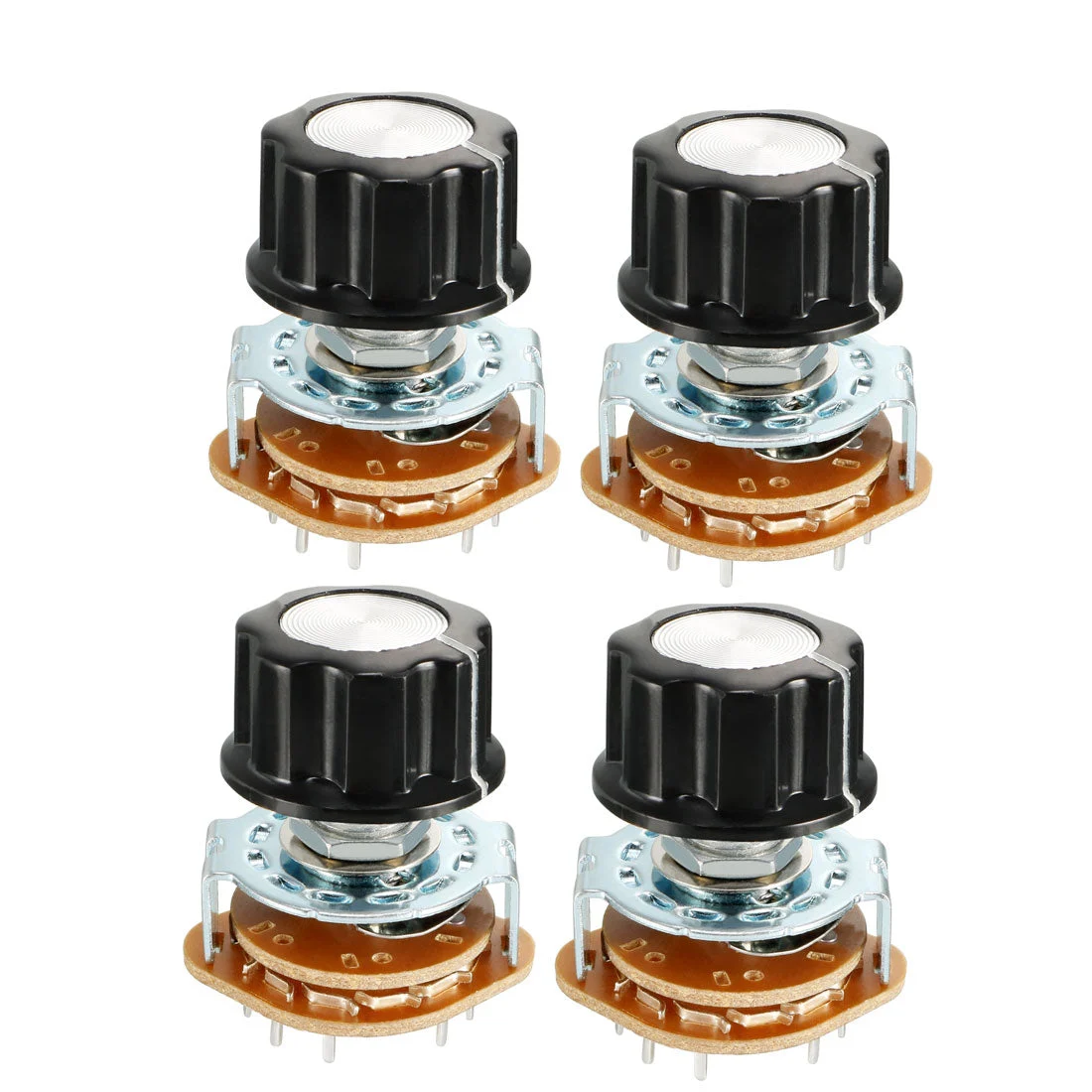

2P6T 2 Pole 6 Throw 1Deck Band Channel Rotary Switch Selector with Plastic Knob 4Pcs

About this item

• Product Name : Band Selector Rotary Switch
• Contact Type : 2 Pole 6 Position,1Deck
• Fit Mounting Hole Diameter: 9mm / 0.35″ ; Pin Number : 14
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length :14mm/ 0.55″
• Comes with mounting nut and black plastic knob, no worry about knob size mismatching

 Description:

• 2 Pole 6 Position design, plastic metal material, easily turned.
• Comes with mounting nut and black plastic knob, no worry about knob size mismatching
• Widely used on radio, TV, industrial machine control unit, or other electronic devices.

Specification:

• Product Name : Band Selector Rotary Switch
• Package Content : 4Pcs x Rotary Switch
• Model : RS25 2*6+A03
• Material : Metal, Plastic
• Contact Type : 2 Pole 6 Position,1Deck
• Pin Number : 14
• Fit Mounting Hole Diameter: 9mm / 0.35″
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 14mm/ 0.55″
• Dimensions :37.8 x 31mm / 1.47″ x 1.22″(Max.H*W)
