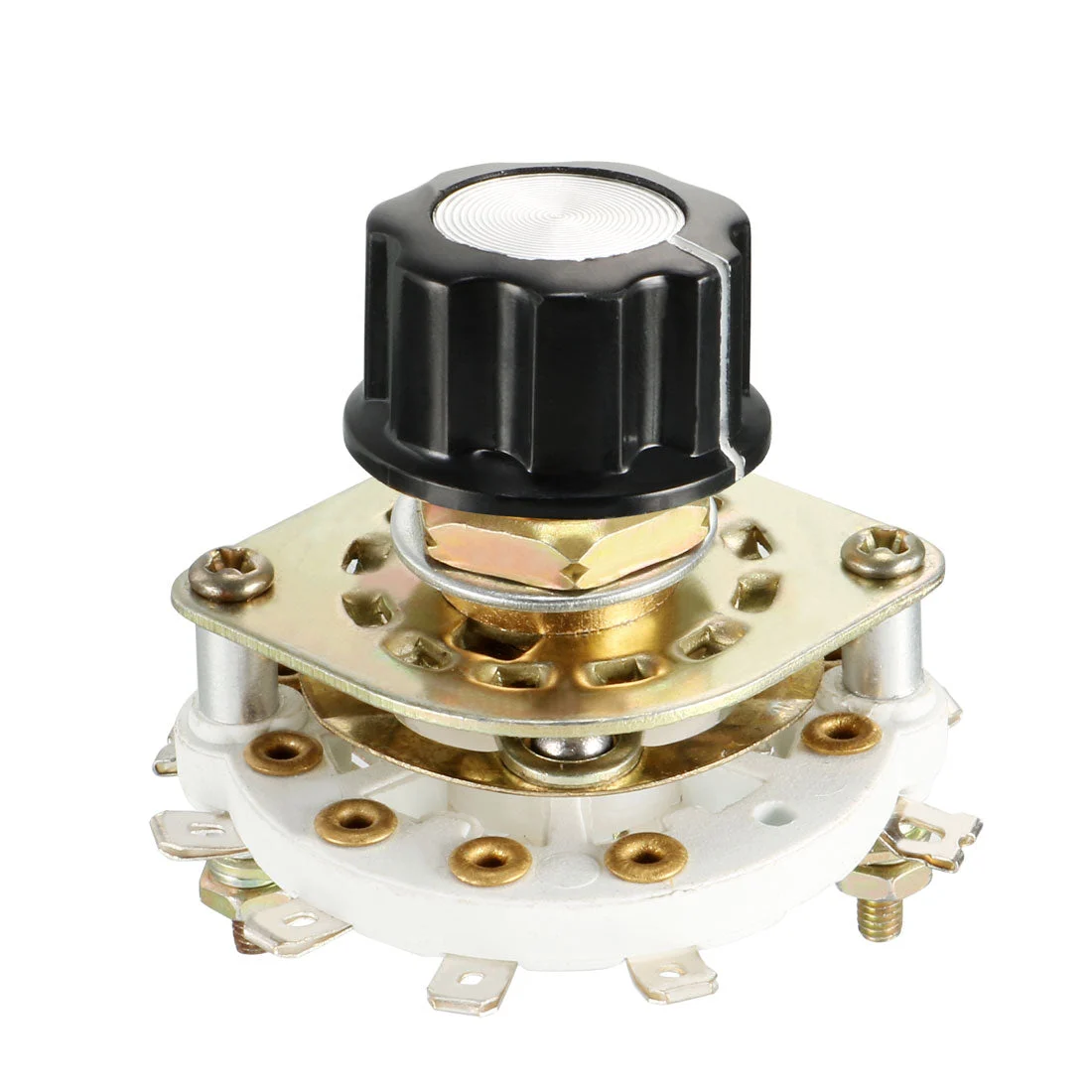

2P4T 2 Pole 4 Throw Single Deck Band Channel Rotary Switch Selector with Black Plastic Knob

About this item

• Product Name : Band Selector Rotary Switch
• Contact Type :2 Pole 4 Position,1Deck
• Fit Mounting Hole Diameter: 10mm / 0.39″ ; Pin Number : 10
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 12mm/ 0.47″
• Comes with mounting nut and black plastic knob, no worry about knob size mismatching

 Description:

• 2 Pole 4 Position design, plastic metal material, easily turned.
• Comes with mounting nut and black plastic knob, no worry about knob size mismatching
• Widely used on radio, TV, industrial machine control unit, or other electronic devices.

Specification:

• Product Name : Band Selector Rotary Switch
• Package Content : 1Pcs x Rotary Switch
• Model : KCZ 2*4+A03
• Material : Metal, Plastic
• Contact Type :2 Pole 4 Position,1Deck
• Pin Number : 10
• Fit Mounting Hole Diameter: 10mm / 0.39″
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 12mm/ 0.47″
• Dimensions :44 x 42mm / 1.73″ x 1.65″(Max.H*W)
