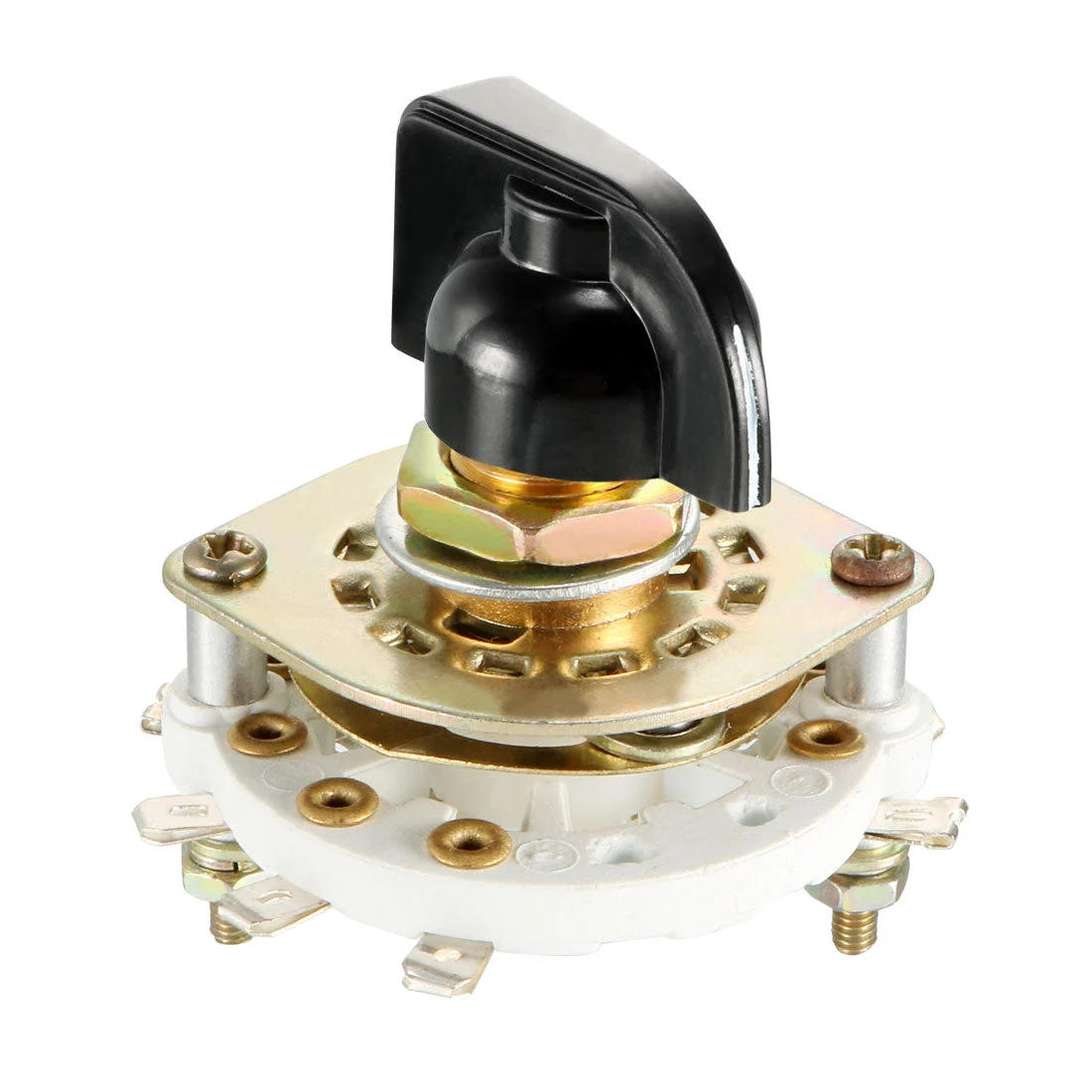

2P3T 2 Pole 3 Throw Single Deck Band Channel Rotary Switch Selector with Plastic Knob

About this item

• Product Name : Band Selector Rotary Switch
• Contact Type : 2 Pole 3 Position,1Deck
• Fit Mounting Hole Diameter: 10mm / 0.39″ ; Pin Number : 8
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 12mm/ 0.47″
• Comes with mounting nut and black plastic knob, no worry about knob size mismatching

 Description:

• 2 Pole 3 Position design, plastic metal material, easily turned.
• Comes with mounting nut and black plastic knob, no worry about knob size mismatching
• Widely used on radio, TV, industrial machine control unit, or other electronic devices.

Specification:

• Product Name : Band Selector Rotary Switch
• Package Content : 1Pcs x Rotary Switch
• Model : KCZ 2*3+K7-1
• Material : Metal, Plastic
• Contact Type : 2 Pole 3 Position,1Deck
• Pin Number : 8
• Fit Mounting Hole Diameter: 10mm / 0.39″
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 12mm/ 0.47″

Dimensions : 44.5 x 42.5mm / 1.75″ x 1.67″(Max.H*W)
