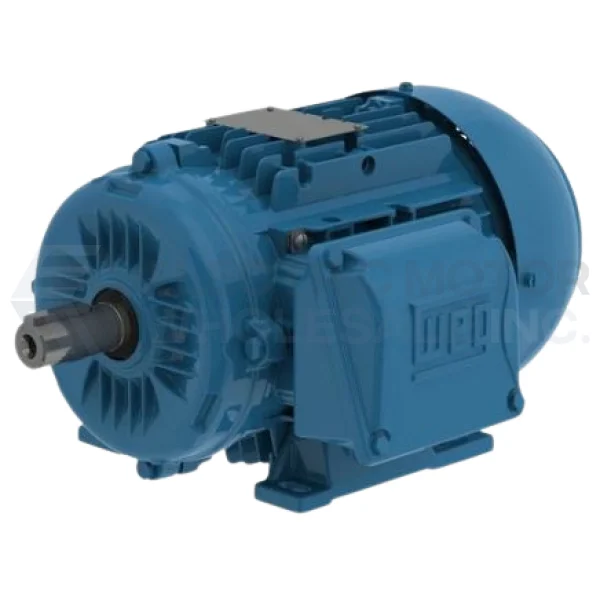

WEG IEC TRU-METRIC motors are made to meet the requirements of a global market. This line is designed and built according to European IEC 60034 and IEC 60079 standards. WEG stocks IEC motors in the US with UL and CSA certifications to allow installation in the North American market, as well as CE for Europe and many other export markets to serve North American manufacturers that export machines to IEC markets.
- Aluminum frames have removable feet for easy F1, F2 and F3 (B3L, B3R, B3T) conversion
- 1.15 service factor for 60 Hz operation (IE2)
- Optimized ventilation system for cooler operation and reduced noise levels.
- 60 Hz (1.15 service factor) and 50 Hz (1.0 service factor)
- Class F insulation
- F2 mounting as standard (F1 convertible)
- Stainless Steel Nameplate – Laser etched with High contrast background
- Gasketed conduit box
Specifications
|
Brand: |
WEG |
|
Application: |
General Purpose |
|
Output HP: |
2 |
|
Output KW: |
1.5 |
|
Output RPM: |
1755 |
|
Frame Size IEC: |
90S/L |
|
Mount NEMA: |
With Base |
|
Mount IEC: |
B3L(E) |
|
Enclosure NEMA: |
IC411 – TEFC |
|
Enclosure IEC: |
IP55 |
