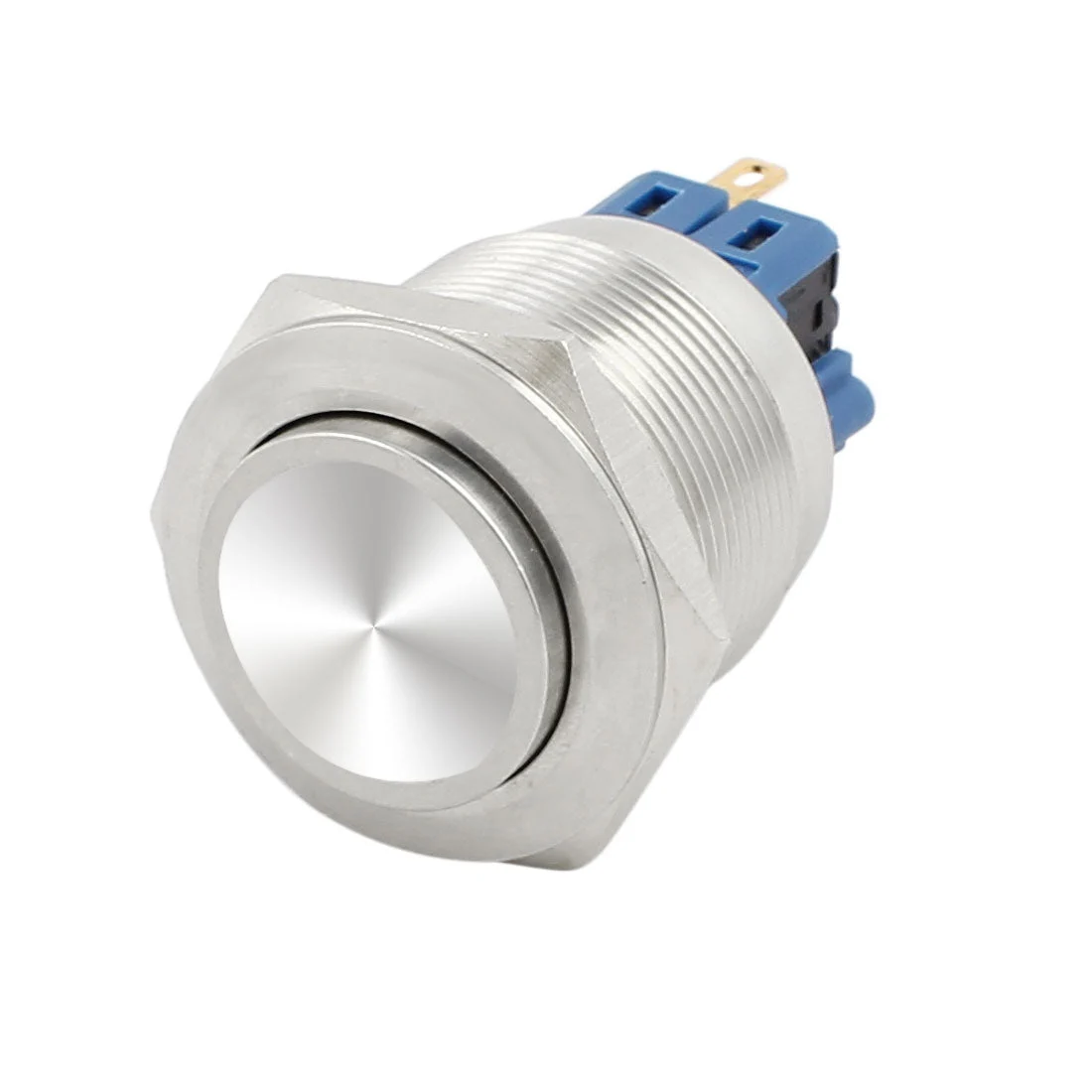

About this item
- Oeperation Type: Momentary; Contact Type: 1NO+1NC; Current: 5A; Voltage: AC 250V;Install Style: PCB Type
- Product Material: Stainless Steel, Electric Parts; Net Weight: 48g; Total Size: 44 x 32mm/1.73″ x 1.25″(L*Max.D)
- Main Color: Silver Tone; Cap Type: High Round; Terminal Quantity: 4; Thread Diameter: 25mm
- Operating Temperature: -25C to +55C; Operating Humidity: 45 to 85%RH;Protection Rating: IP67
- Contact Resistance: 50Mohm Maximum; Insulation Resistance: 100Mohm Minimum;Package Content: 1 x Push Button Switch
Notice:
Rated IP67 waterproof.These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater.
Main application:
Furniture,hotel equipment,cleaning equipment,audio equipment,industrial equipment,lighting engineering,building models,access control system,car,motorcycle,balance electric scooter,computers,coffee machines,juicers etc.
Specificatios:
Mounting Thread Dia: 25mm
Operation Type: Momentary
Switch Contact: 1NO+1NC
Pole and Throw: DPST
Head Shape: High Round
Max Switch Rating:AC 5A/250V
Terminal Type: Solder
Terminal Quantity:4
Weight:48g
Body Material: Stainless Steel (SS is much more resistant to wear and abrasion)
Button Material: Stainless Steel
Protection Rating: IP67
Operation Temperature: -20C to + 55C
Package Include:
1 x Metal Button Switch
1 x Rubber O-ring
