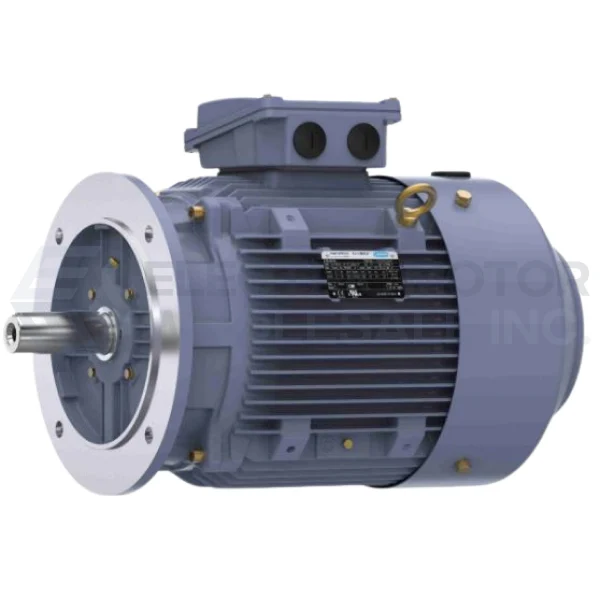

APPLICATIONS: For use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards. The TERRAMAX is not only designed to International standards but meets NEMA performance and efficiency standards making it suitable for requirements worldwide.
FEATURES:
- Meets IE3 European and NEMA premium efficiency standards
- 60/50 Hz interchangeability
- UL listed and CSA certified
- Wye Start-Delta Run as optional feature above 3kW
- Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty
- IEC design “N” with NEMA “B” torques
- Meets IEC 34 electrical standards
- Meets IEC 72 dimensions and tolerances
- CE marked
Specifications
|
Brand: |
Marathon |
|
Application: |
General Purpose |
|
Output HP: |
25//20 |
|
Output KW: |
18.5//15.0 |
|
Output RPM: |
3550//2960 |
|
Frame Size IEC: |
160L |
|
Mount IEC: |
B5 D Flange |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP55 |
|
IEC Shaft Dia.: |
42mm |
