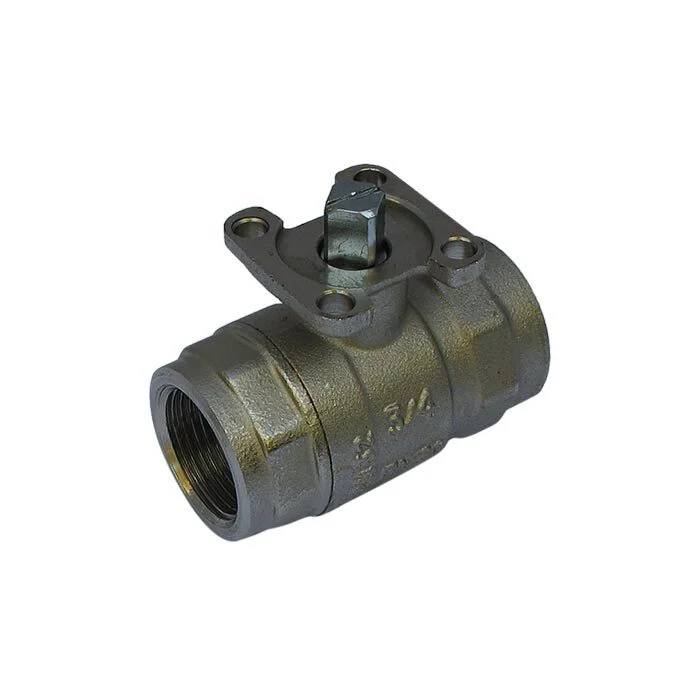

2-Way ball valve of nickel plated brass from JP Fluid Control with G3/4 inch pipe threads (BSPP) and a full bore (20 mm). The valve has an ISO-Top flange and is not provided with a lever for manual control. The ball valves in the 230-series of JP Fluid Control are characterized by long life.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | 230 |
| Function | 2-way |
| Ports | G3/4 BSP (F/F) |
| Housing | Nickel plated brass (CW 617N) |
| Ball | Hard chrome plated brass |
| Seals | PTFE (teflon) |
| Nominal Diameter | 20 mm (full bore) |
| Kv value | 45 m3/h |
| Operation | Suitable for automatic control (no manual lever) |
| ISO 5211 flange | F03 |
| Max pressure | 32 bar |
| Temperature | -10°C .. 100°C |
Installation
The valve has female thread on both sides (3/4 inch). This is BSPP (British Standard Pipe Parallel). With our range of
Maximum pressure versus temperature – 230-series.
Specifications
Connection size : 3/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Seal material : Teflon (PTFE)
Max pressure difference at 20 °C (bar) : 32
Recommended for : Water,Steam,Air,Oil,Fuel,Solvents,Alcohols,Lubricant
Min temperature (°C) : -10
Max temperature (°C) : 100
Valve bore (mm) : 20
Kv value [m3/h] : 45
Housing construction : 2-part
Model : Straight
Article compression class : PN 32
Ball seal : Teflon (PTFE)
Full bore : Yes
Material ball : Brass
Spindle seal material : HNBR
