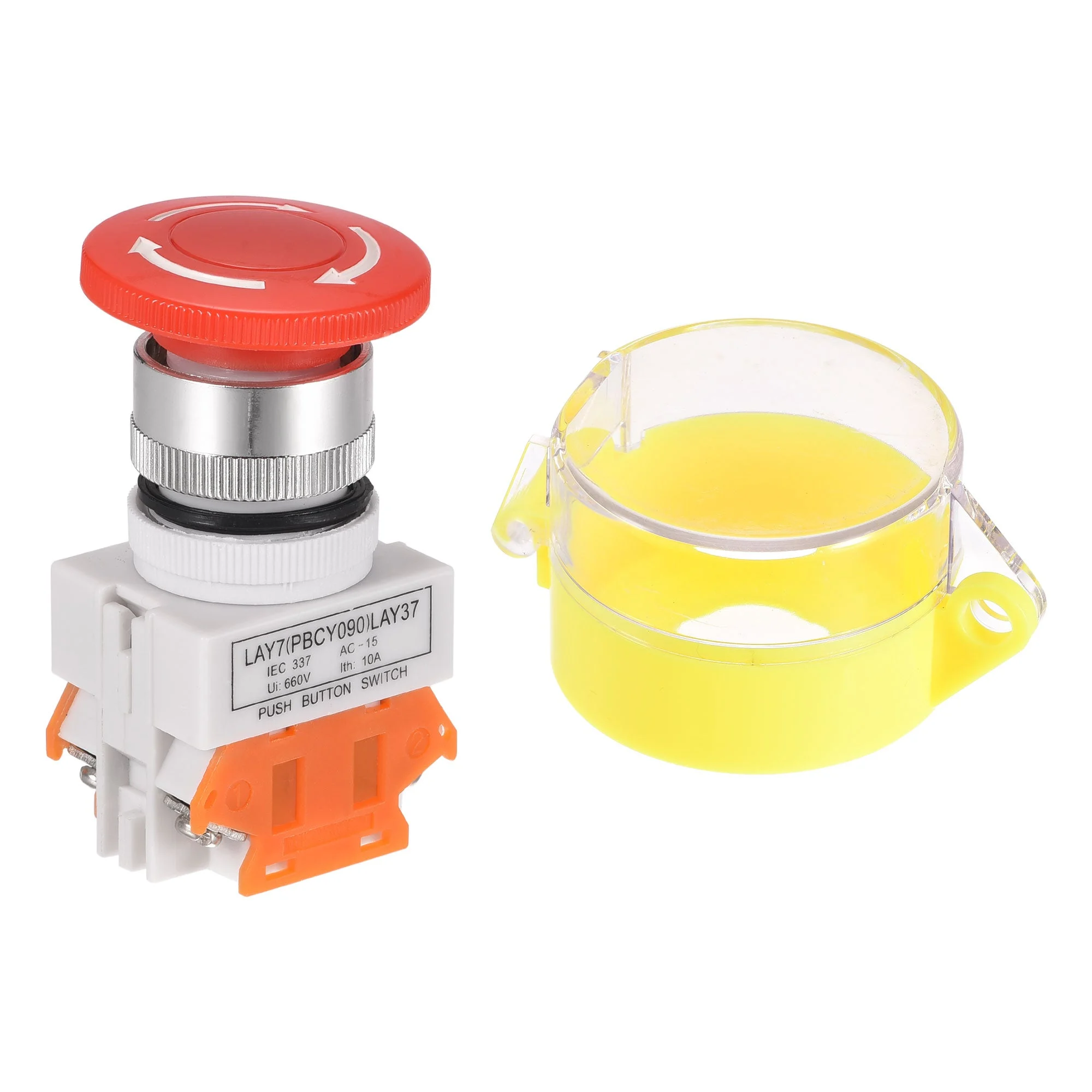

22mm Mounting Latching Emergency Stop Push Button Switch With Yellow Protective Cover 2NC

About this item

• Operation Type: Latching; Contact Type: 2NC; Overall Size: 72*30*37(L*W*H)
• (Rated) Voltage : 250V; Ui: 660V; Ith: 10A；Push to stop and lock, twist to reset.
• Mounting Hole Dia: 22mm / 0.87″;Terminals Quantity: 4; Main Color: red
• Button Sign: 3 Arrows; Package Content: 1 x Push button Switch & Yellow Protective Cover
• Widely used in lathe, CNC machine tool, laser cutting machine, elevator and other control circuit emergency stop, suitable for the design and replacement of control panel and electrical box

Description:
2NC contact type, red round head, Latching action, 22mm panel cutout diameter.
Widely used in lathe, CNC machine tool, laser cutting machine, elevator and other control circuit emergency stop, suitable for the design and replacement of control panel and electrical box

Specification:

Model:LAY37-02ZS
Rated Voltage: AC250V
Action Type: Latching (Self-Locking)
Contacts Type: 2NC
Terminals Quantity: 4
Panel Mounting Diameter: 22mm / 0.78″
Overall Size: 72*30*37(L*W*H)
Ui: 660V; Ith: 10A

Package Content:

1 x Push button Switch & 1 x Yellow Protective Cover
