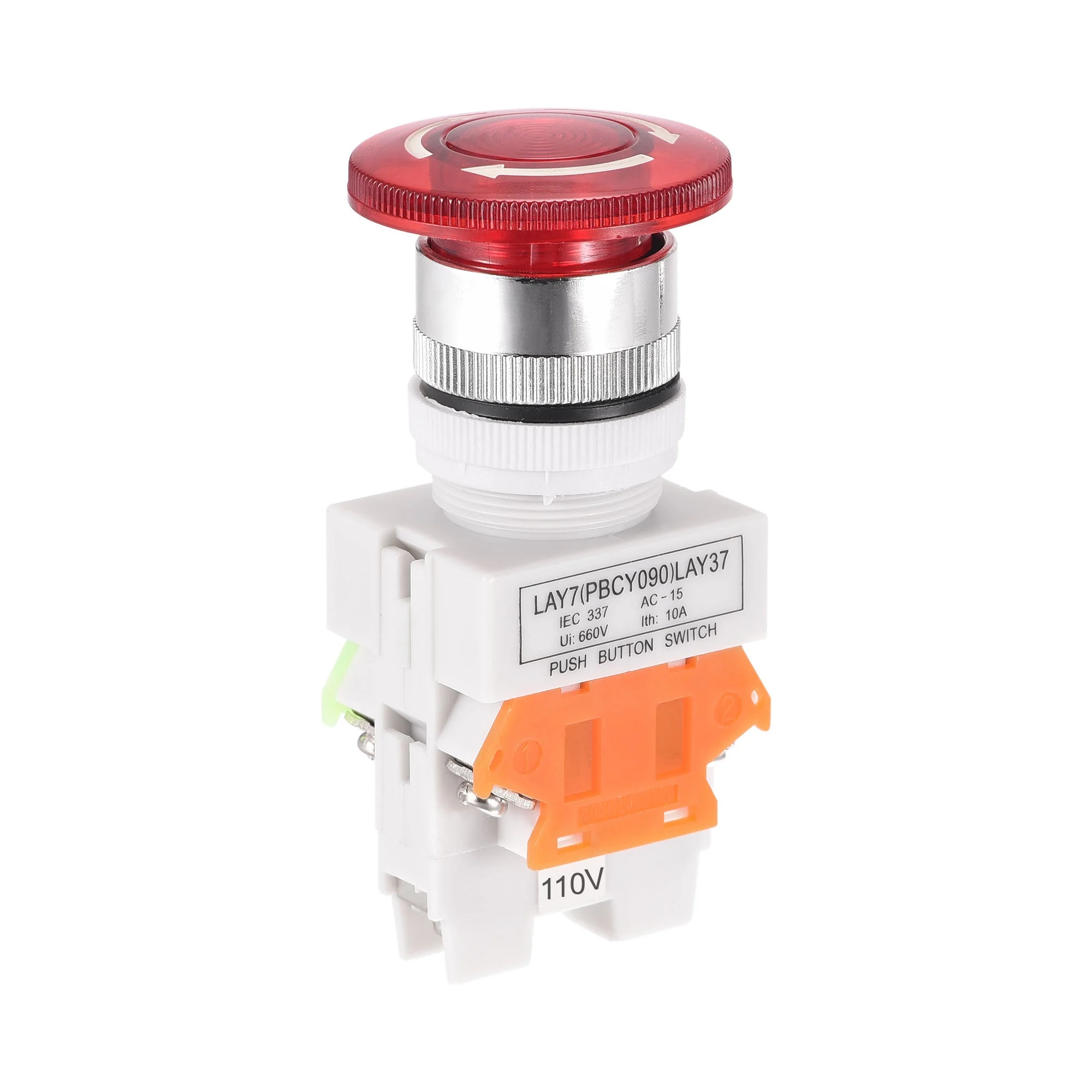

22mm Mounting Latching Emergency Stop Push Button Switch AC250V 10A With Light 110V 1NO 1NC

About this item

• Operation Type: Latching; Contact Type: DPST 1 NO 1 NC; Overall Size: 90*37*30mm(L*W*H)
• (Rated) Voltage : 250V; Ui: 660V; Ith: 10A；Light Voltage:110V
• Mounting Hole Dia: 22mm / 0.87″;Terminals Quantity: 6; Main Color: red+white
• Push to stop and lock, twist to reset.
• Widely used in lathe, CNC machine tool, laser cutting machine, elevator and other control circuit emergency stop, suitable for the design and replacement of control panel and electrical box

Description:
1NO 1NC (DPST) contact type, red round head, Latching action, 22mm panel cutout diameter.
Push to stop and lock, twist to reset.
For emergency stop in industry with the conspicuous red mushroom cap.Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

Specification:

Rated Voltage: AC250V
Light Voltage: 110V
Action Type: Latching (Self-Locking)
Contacts Type: 1NO 1NC
Terminals Quantity: 6
Panel Mounting Diameter: 22mm / 0.78″
Overall Size: 90*37*30mm(L*W*H)
Ui: 660V; Ith: 10A

Package Content:

1 x Push button Switch
