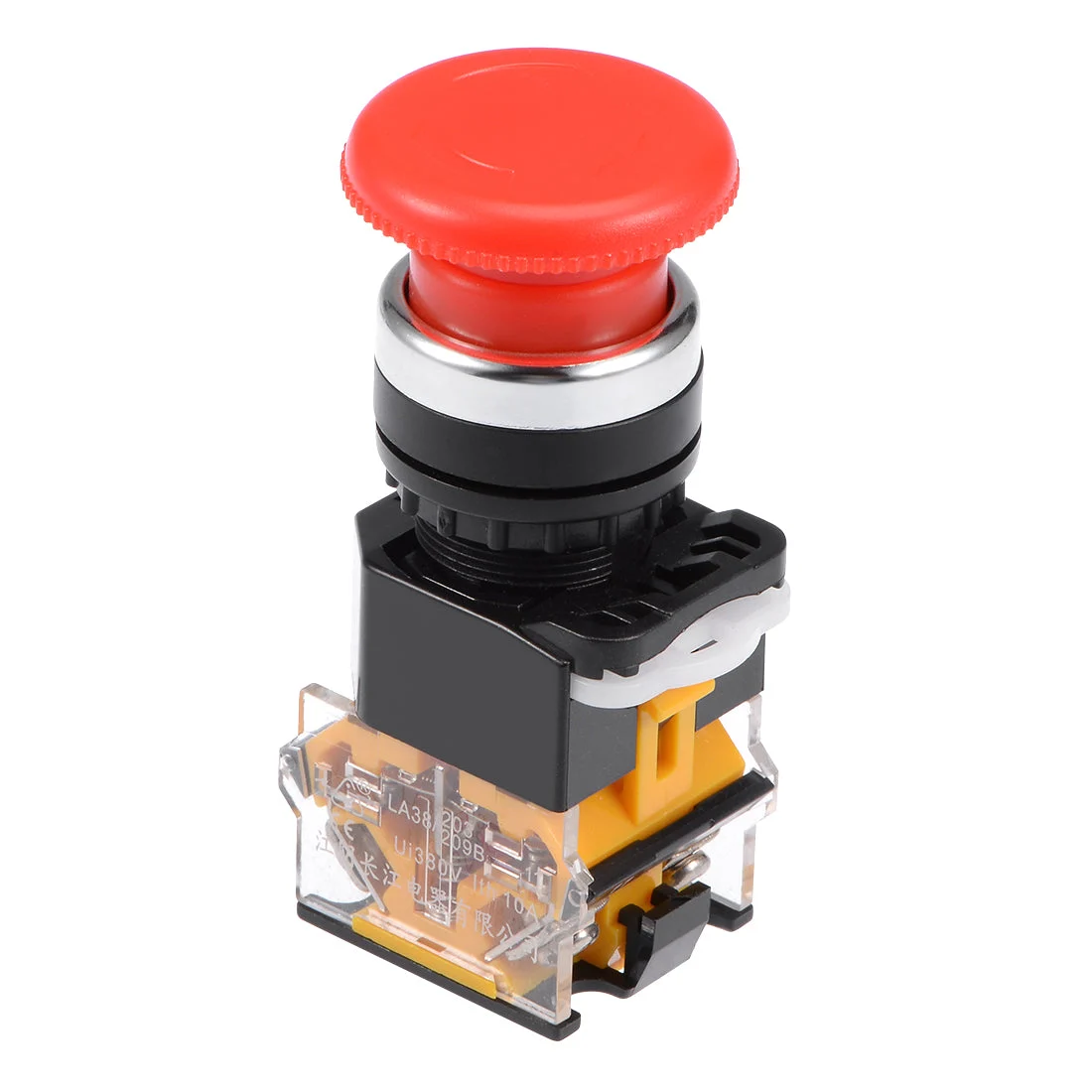

22mm Mounting Hole Latching Emergency Stop Push Button Switch Red 1NO 1NC

About this item

• (Rated) Voltage & Current: /; Operation Type: Latching; Contact Type: DPST 1 NO 1 NC; Country of Manufacture: CHINA
• Material: Plastic & Metal; Net Weight: 54g; Package Content: 1 x Push button Switch; Light Voltage: no light include
• Ui: 380V; Ith: 10A; Mounting Hole Dia: 22mm / 0.87″
• Terminals Quantity: 4; Brand: Uxcell; Main Color: red
• Fit Panel Thickness(Adjustable): Max 0.6cm; Oeperation Type: Latching; Button Sign: 3 Arrows

1NO 1NC (DPST) contact type, red round head, Latching action, 22mm panel cutout diameter.Push to stop and lock, twist to reset.

For emergency stop in industry with the conspicuous red mushroom cap.Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
