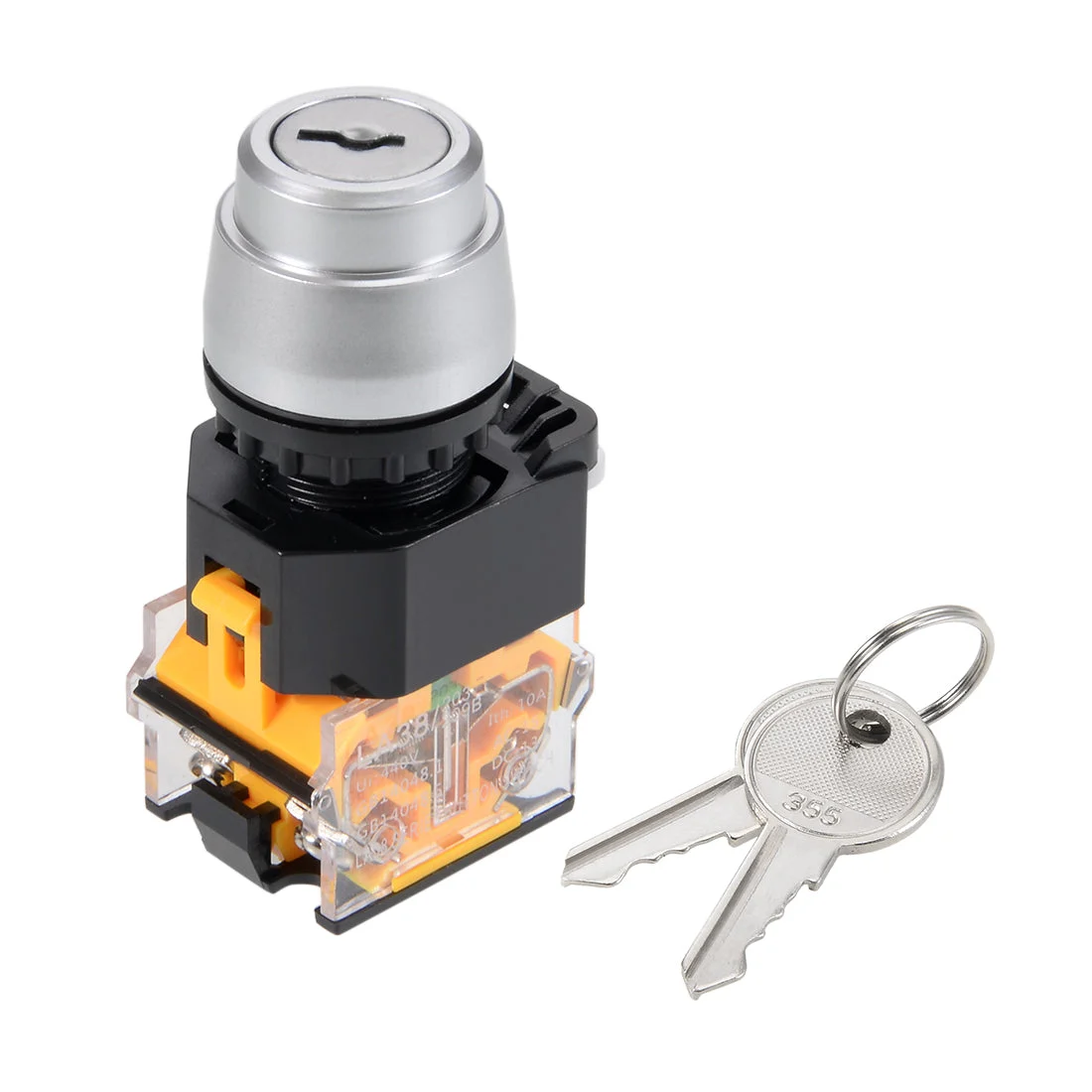

22mm 2 Positions Key Locking Push Button Switch W Keys DPST

About this item

• 1. (Rated) Voltage & Current: Ui: 415V; Ith: 10A; Operation Type: Locking; Contact Type: DPST 1NO 1NC
• 2. Country of Manufacture: CHINA; Material: Plastic,Metal; Net Weight: 70g
• 3. Package Content: 1 x Key Push Button Switch / 2 x Keys; Light Voltage: no light include;
• 4. Mounting Hole Dia: 22mm / 0.87″; Terminals Quantity: 4
• 5. Main Color: Silver; Position: 2

Description:

1. 1NO 1NC (DPST) contact type, key lock rotary selector action, 22mm panel cutout diameter.

2. Button locking when rotary, rotary again the key to reset.

3. 2 Positions can pull out the key.

4. Used widely to control the electromagnetic, contactor, relay and other automatic control electric circuits.
