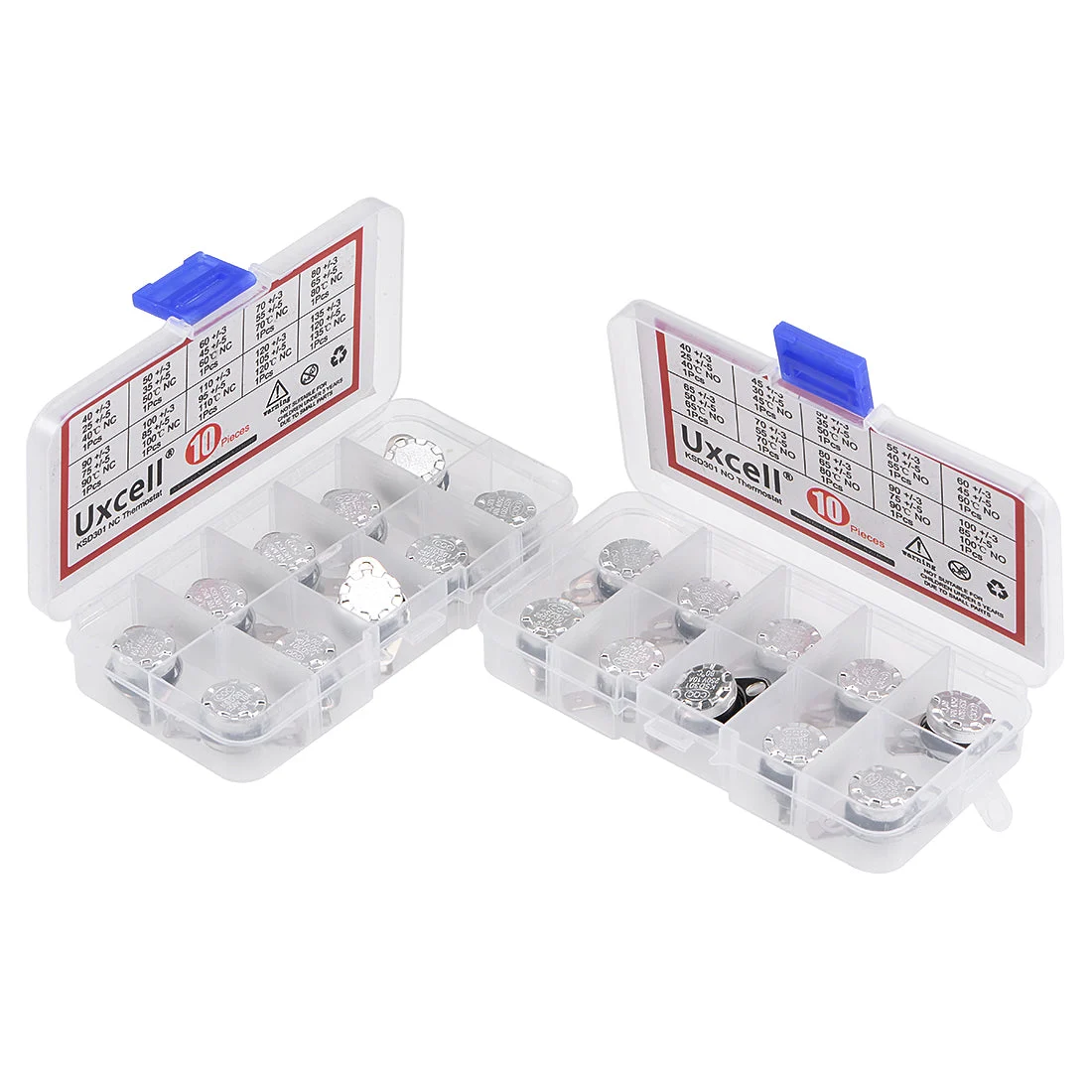

20pcs NC+NO KSD301 Thermostat 40-135°C/104-275°F(NC) 40-100°C/104-212°F(NO) Temperature Thermal Control Switch Assortment Kit

About this item

• 【Type】KSD301 40 50 60 70 80 90 100 110 120 135 degrees Celsius Normal Closed & 40 45 50 55 60 65 70 80 90 100 degrees Celsius Normal Open
• 【Function】Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon.
• 【Easy for installation】The flange on the switch is float and easy to installation.The pin width is 6.3mm
• 【Application】Mainly used for microwave oven,electric smoker,coffee maker,speed cook oven,heater,dryer,bath vent heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
• 【Package】NC : 1pcs x 40°C , 1pcs x 50°C , 1pcs x 60°C , 1pcs x 70°C , 1pcs x 80°C , 1pcs x 90°C , 1pcs x 100°C , 1pcs x 110°C , 1pcs x 120°C , 1pcs x 135°C, NO : 1pcs x 40°C , 1pcs x 45°C , 1pcs x 50°C , 1pcs x 55°C , 1pcs x 60°C , 1pcs x 65°C , 1pcs x 70°C , 1pcs x 80°C , 1pcs x 90°C , 1pcs x 100°C, 1pcs x Box

Specification:
Model: KSD301
Action Temperature: NC: 40 50 60 70 80 90 100 110 120 135°C  NO:40 45 50 55 60 65 70 80 90 100°C
Action Type: N.C (Normal Close) + N.O(Normal Open)
Pin Width : 6.3mm/0.25inch
Contact Life: More than 50,000 times (action times)

Package Content :
NC : 1pcs x 40°C , 1pcs x 50°C , 1pcs x 60°C , 1pcs x 70°C , 1pcs x 80°C , 1pcs x 90°C , 1pcs x 100°C , 1pcs x 110°C , 1pcs x 120°C , 1pcs x 135°C
NO : 1pcs x 40°C , 1pcs x 45°C , 1pcs x 50°C , 1pcs x 55°C , 1pcs x 60°C , 1pcs x 65°C , 1pcs x 70°C , 1pcs x 80°C , 1pcs x 90°C , 1pcs x 100°C
2pcs x Box

Description :
1.Feature: Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon.
2.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.
3.Mainly used for microwave oven,electric smoker,coffee maker,speed cook oven,heater,dryer,bath vent heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
