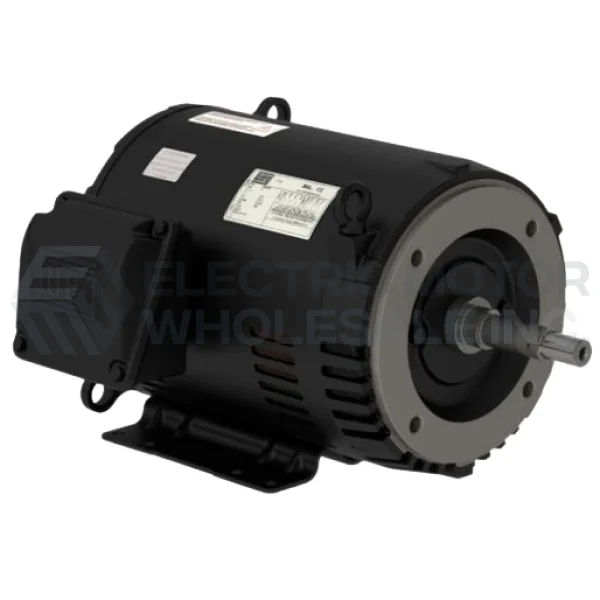

WEG Three Phase JM Pump Motor with Internal AEGIS SGR is designed for high performance with maximum energy efficiency.
Features:
- Inverter Rated 1000:1 VT
- NEMA Super Premium efficiency rating
- Durable rolled steel frame
- 50/60Hz rated (same HP at 50Hz with a 1.0 SF)
- Class F insulation (Impregnation resin and magnet wire are class H)
- F1 mounted (cast iron frames are F2 convertible)
- Stainless steel nameplate – laser etched with high contrast background
- Regreasable ball bearings
- Gasketed conduit box
- Optimized ventilation system for cooler operation and reduced noise level
- Solid base for reduced vibration levels
- NPT threaded terminal box
Specifications
|
Brand: |
WEG |
|
Application: |
Closed Coupled |
|
Output HP: |
20 |
|
Output KW: |
15 |
|
Output RPM: |
1770//1460 |
|
Frame Size NEMA: |
254/6JM |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
ODP |
|
Enclosure IEC: |
IP21 |
|
Voltage: |
230/460//190-220/380-415 |
