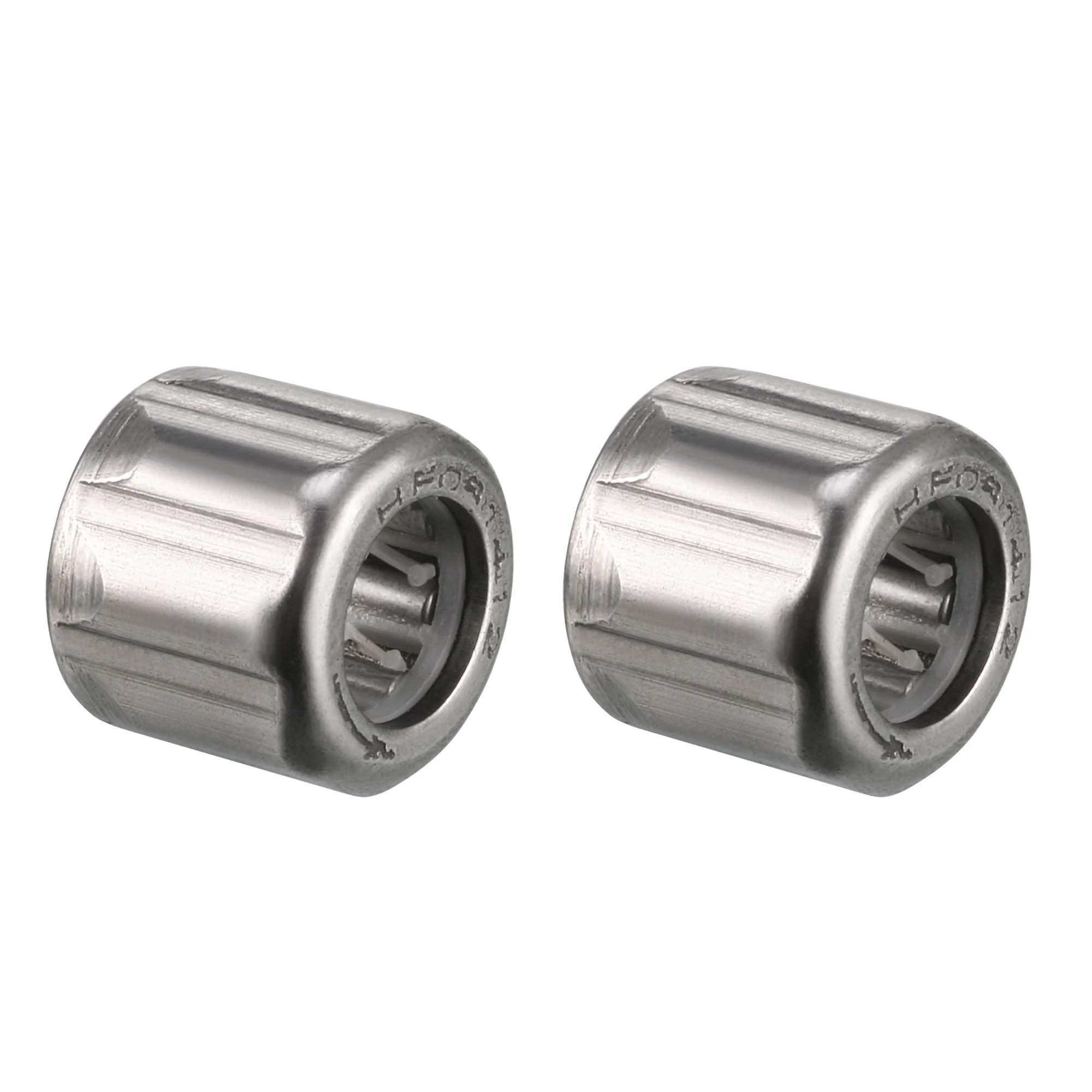

2 Pcs Needle Roller Bearings, 8mm Bore 14mm OD 12mm Width Chrome Steel Needles, One Way Clutch Bearing

About this item

• Size: (I.D. (Fw)= 8mm, O.D. (D)= 14mm, Width (C)= 12mm)
• ST14 steel drawn cup, GCr15 needle rollers one way clutch
• Good heat tolerance, high load carrying capacity and stiffness
• Low cross section, enable downsizing and suit for use in restricted mounting spaces
• Pre-Lubricated. Good running properties

Specification:
Drawn Cup Material: ST14 Steel
Needle Roller Material: Chromium Steel (GCr15)
Bore Diameter (Fw): 8mm
Outside Diameter (D): 14mm
Width: 12mm
Torque: 5N*m
Rotating Shaft Limiting Speed: 16000rpm
Rotating Outer Ring Limiting Speed: 12000rpm
Package Content:
2  x Needle Roller Bearing
Description:
1. Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.
2. These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.
3. Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.
