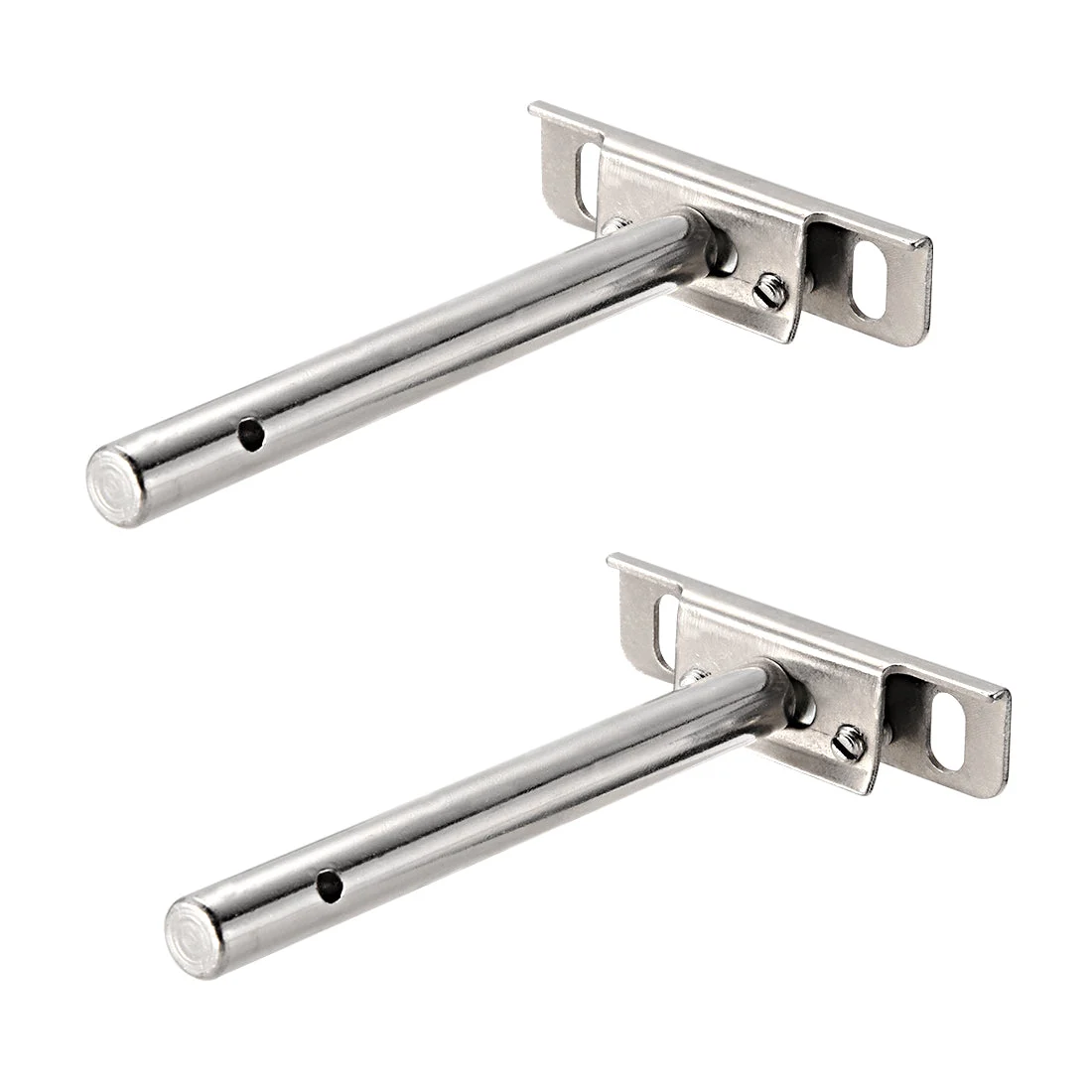

2 pcs 76mm x 20mm x 130mm Adjustable Blind Shelf Floating Support Invisible Brackets, Concealed Mount for Home Wall DIY Silver Tone

About this item

• [SIZE] – 2.99″(76mm) wide, 5.12″(130mm) long, 0.47″(12mm) shaft diameter.
• [MATERIAL] – Made of good quality iron, nickel-plated surface, strong and durable.
• [EASY to INSTALL] – With 2 mounting holes, 0.51″(13mm) x 0.28″ (7mm) hole size.
• [APPLICATIONS] – This braces can be applied in many different places, widely used in home and factory areas.
• [PACKAGE CONTENT] – 2 x Concealed Bracket (Mounting screws are not included).

Specifications:

Material: Iron

Shaft Diameter: 12mm / 0.47″

Size(Approx.): 130 x 76 x 20mm / 5.12″ x 2.99″ x 0.79″(L*W*H)

Mounting Hole Size: 13 x 7mm / 0.51″ x 0.28″ (L*W).

Mounting Hole Distance: 54mm / 2.1″

Package Content:

2 Pcs x Concealed Bracket

INSTALLATION GUIDE

Tools:

1.Every bracket will need screws x2, anchors x2, washer x2. (All are not included)

2.You need to have Level, Drill, Electric Screwdriver, Hammer. (You may need drill press if the shelf is DIY)

STEP:

1.Drill holes on wall – You should use level to mark cross on the wall to make sure you drill the holes in the right place.

2.Install the bracket – You can use washers to help the bracket install tightly. Electric screwdriver is highly recommended.

3.Adjustment – Slightly adjust the rod and height of bracket .

4.Insert the shelf – Just simply put it in, what is more important is to prepare slot for the bracket. Not only for the rods, but also for hole bracket.
