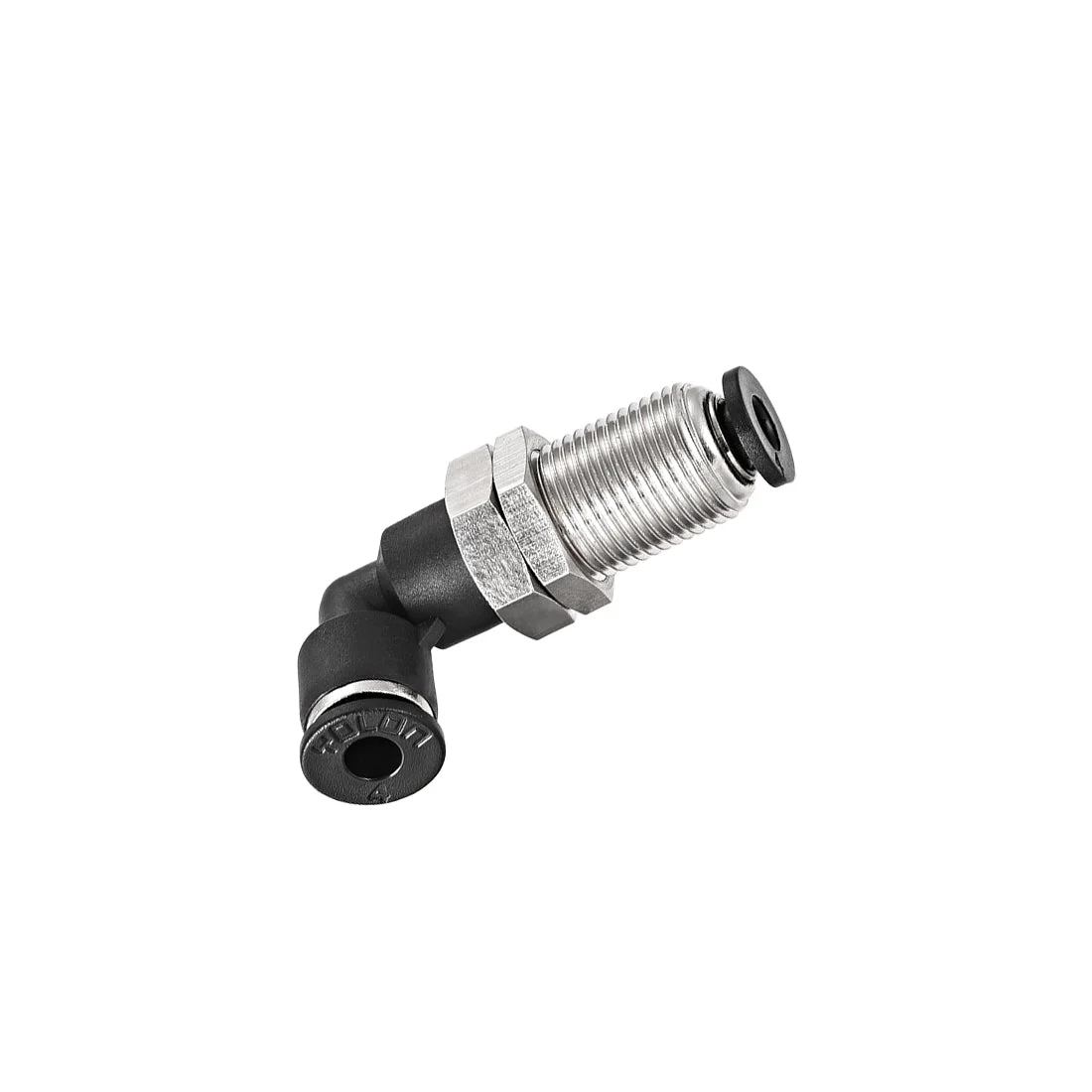

2 End 4mm Tube Push Lock Elbows, M12 L Shape Bulkhead Union Air Fittings

About this item

• [SIZE] Thread Size*Pitch: M12*1.0; 2 End O Ring Inner Diameter (for Tube Outer Diameter): 4 mm; Overall Size: 42 x 24.5 x 16 mm / 1.65 x 0.96 x 0.63 inch (L*W*H)
• [FEATURE] Push to connect,after installation, the direction of the tube can be changed freely.
• [EASY to FASTEN] Outside (and Inside where applicable) hexagonal wrench tightening.
• [APPLICATION] Mainly used for air compression systems, vacuum systems, pneumatic systems.
• [NOTE] Make sure that the cutting surface of the pipe is vertical. Please insert the tube into the bottom before use.

Feature:
Designed for Polyurethane or Nylon tubing.
Even after installation, the direction of the tube can be changed freely.
Elliptical release ring help to connect tube easily by manual, no special tools required.
Outside (and Inside where applicable) hexagonal wrench tightening.
Applications: Mainly used for air compression systems, vacuum systems, pneumatic systems.
Specification:
Function: Bulkhead Union Air Fittings
Material: Plastic, Brass Nickel Plated
Thread Size*Pitch: M12*1.0
2 End O Ring Inner Diameter (for Tube Outer Diameter): 4 mm
Overall Size: 42 x 24.5 x 16 mm / 1.65 x 0.96 x 0.63 inch (L*W*H)
Package Content:
1 x Quick Fittings
