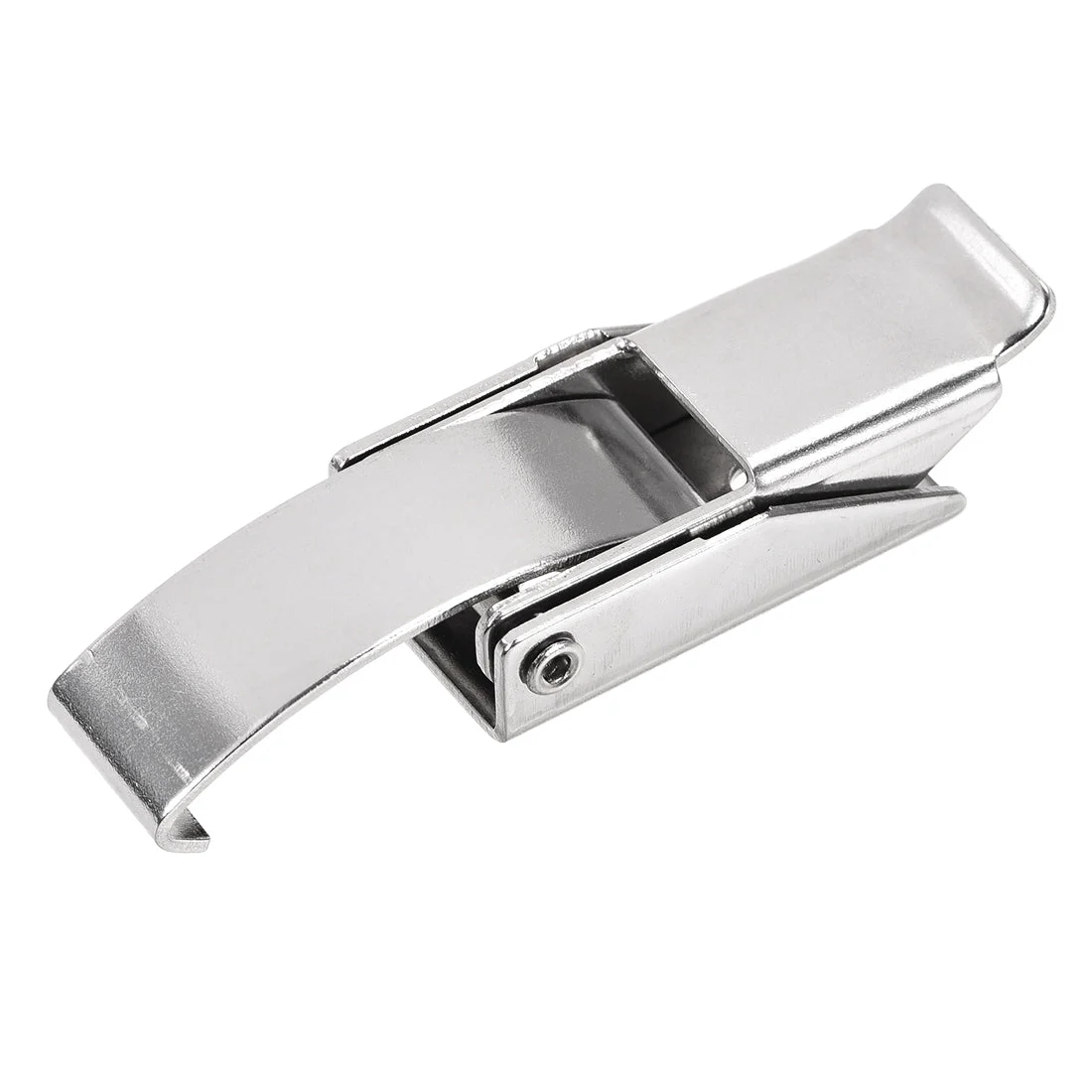

2.87-inch SUS304 Stainless Steel Draw Toggle Latch with Spring-steel Hook

About this item

• [Size] – 73mm x 24mm / 2.87″ x 0.94″ (L*W).
• [Load] – Locking load: 200N, Ultimate load: 1300N.
• [Feature] – with spring-steel hook to reduce vibration ,apply prepressing.
• [Material] – Premium SUS304 stainless steel ultimate rust and weather resistance.
• [Widely Use] – Toggle hook latches are used for the secure holding of flaps, container lids, etc.

• Toggle hook latches are used for the secure holding of flaps, container lids, etc.
• They lock securely over the center and are thus vibration proof.
• The components to be linked are held in position by the elasticity of the pulling latch.
• The holding capacity can be adversely affected by the conditions under which the latch is used, such as vibration or shock loads.
• Easy to install, and please note mounting screws are not included here.


Specification:
Material: SUS304 Stainless Steel
Mounting Hole Diameter: 4.5mm / 0.177″
Size: 73mm x 24mm / 2.87″ x 0.94″ (L*W)
Ultimate load: 1300N
Locking load: 200N

Package Content:
1 x Toggle Latch
