About this item

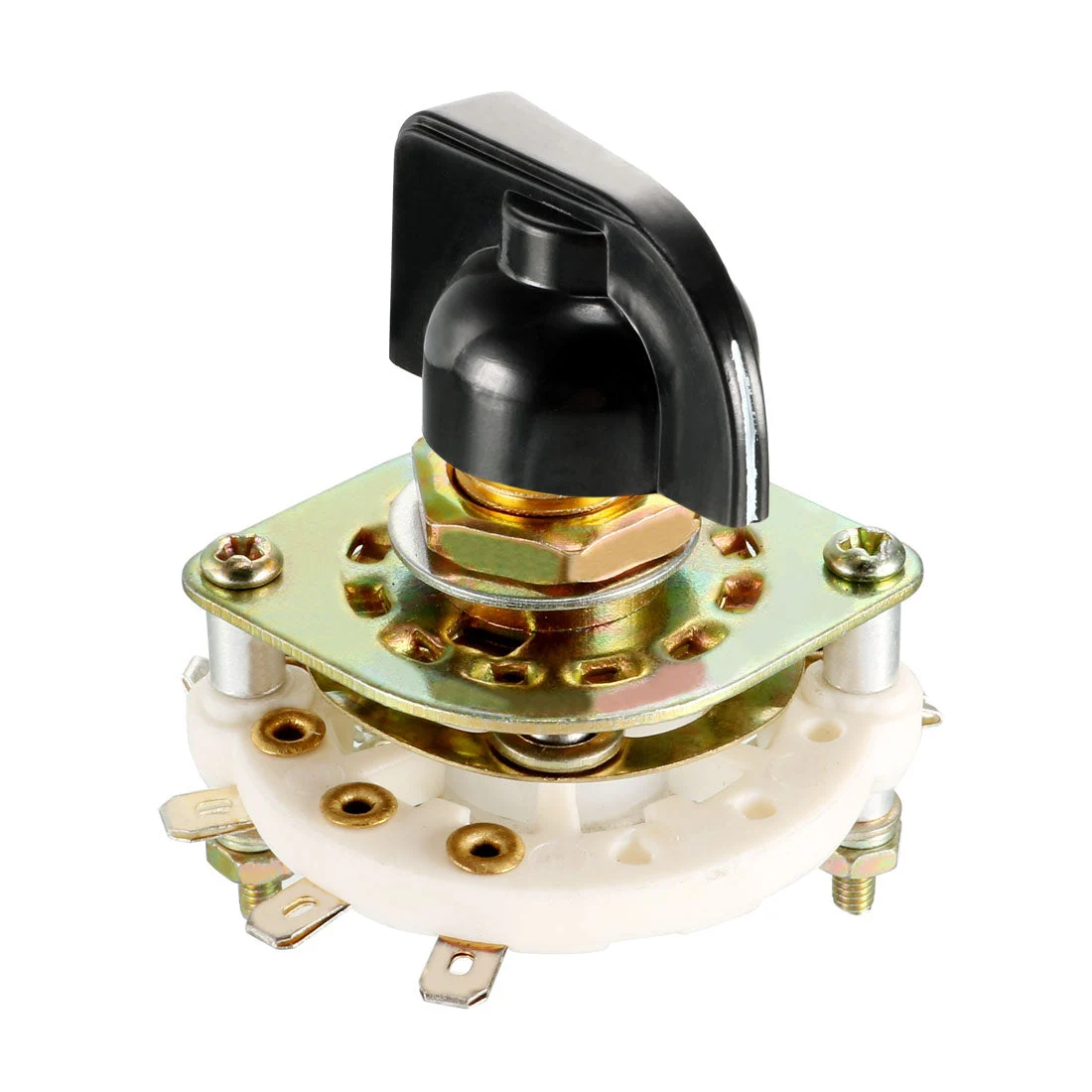

- Product Name : Band Selector Rotary Switch
- Contact Type : 1Pole 8Position,1Deck
- Fit Mounting Hole Diameter: 9.7mm / 0.38inch ; Pin Number : 9
- Rotating Shaft Dia : 6mm / 0.24inch ; Shaft Length : 11.7mm/ 0.46inch
- Comes with mounting nut and black plastic knob, no worry about knob size mismatching
Description:
- 1 Pole 8 Position design, plastic metal material, easily turned.
- Comes with mounting nut and black plastic knob, no worry about knob size mismatching
- Widely used on radio, TV, industrial machine control unit, or other electronic devices.
Specification:
- Product Name : Band Selector Rotary Switch
- Model : KCZ 1*8+K7-1
- Material : Metal, Plastic
- Contact Type : 1Pole 8Position,1Deck
- Pin Number : 9
- Fit Mounting Hole Diameter: 9.7mm / 0.38inch
- Rotating Shaft Dia : 6mm / 0.24inch ; Shaft Length : 11.7mm/ 0.46inch
- Dimensions (not including the cap) : 44×41.6mm/1.73×1.64inch(Max.H*D)
Package Content :
1 x Rotary Switch
