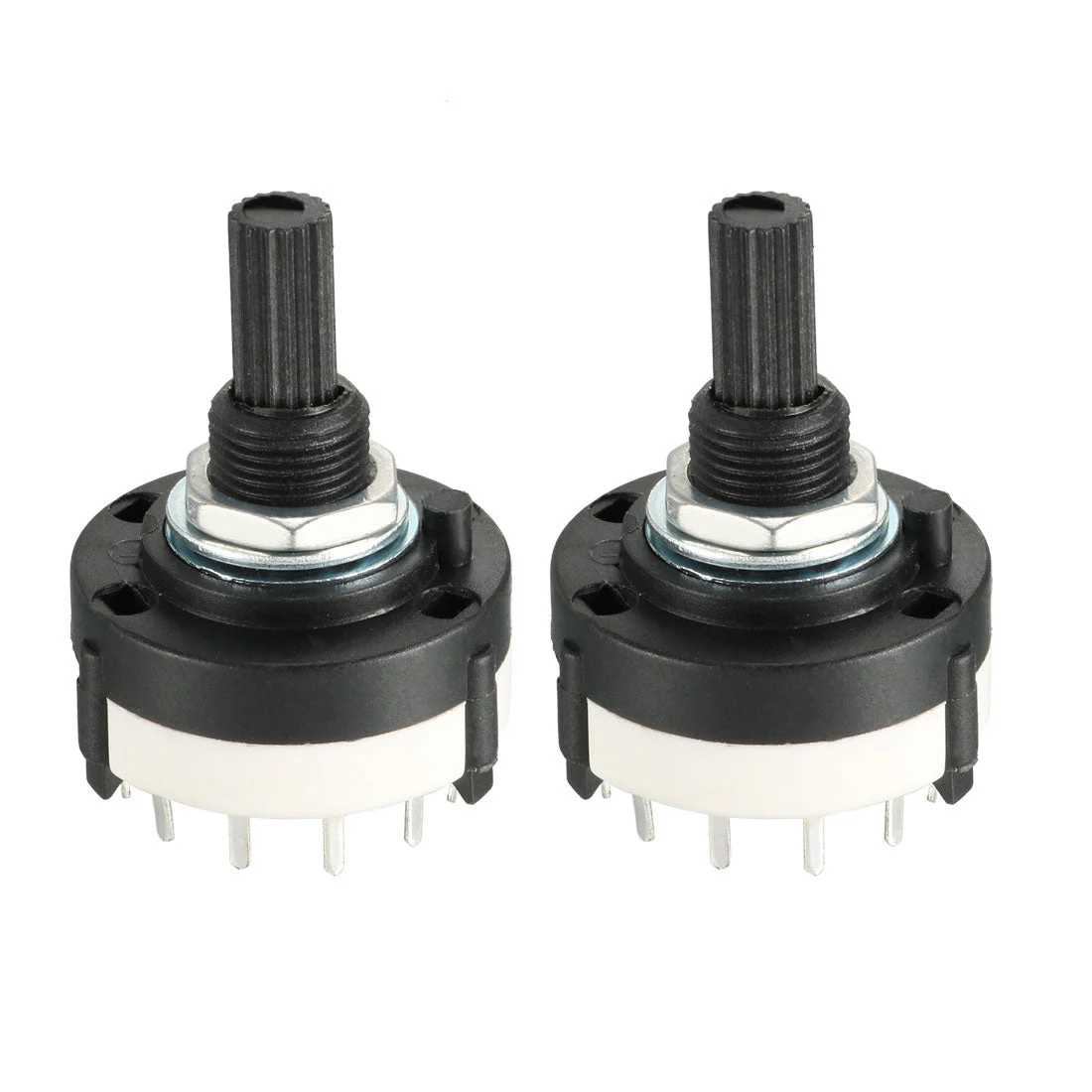

1P12T 1 Pole 12 Throw Single Deck Band Channel Rotary Switch Selector 2pcs

About this item

• Product Name : Band Selector Rotary Switch
• Contact Type : 1 Pole 12 Position,1Deck
• Fit Mounting Hole Diameter: 9mm / 0.35″ ; Pin Number : 13
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 11.7mm/ 0.46″
• Widely used on radio, TV, industrial machine control unit, or other electronic devices.

 Description:

• 1 Pole 12 Position design, plastic metal material, easily turned.
• Widely used on radio, TV, industrial machine control unit, or other electronic devices.

Specification:

• Product Name : Band Selector Rotary Switch
• Package Content :2 Pcs x Rotary Switch
• Model : RS26 1*12
• Material : Metal, Plastic
• Contact Type : 1 Pole 12 Position,1Deck
• Pin Number : 13
• Fit Mounting Hole Diameter: 9mm / 0.35″
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 11.5mm/ 0.45″
• Dimensions : 38 x 26.5mm / 1.5″ x 1.04″(Max.H*W)
