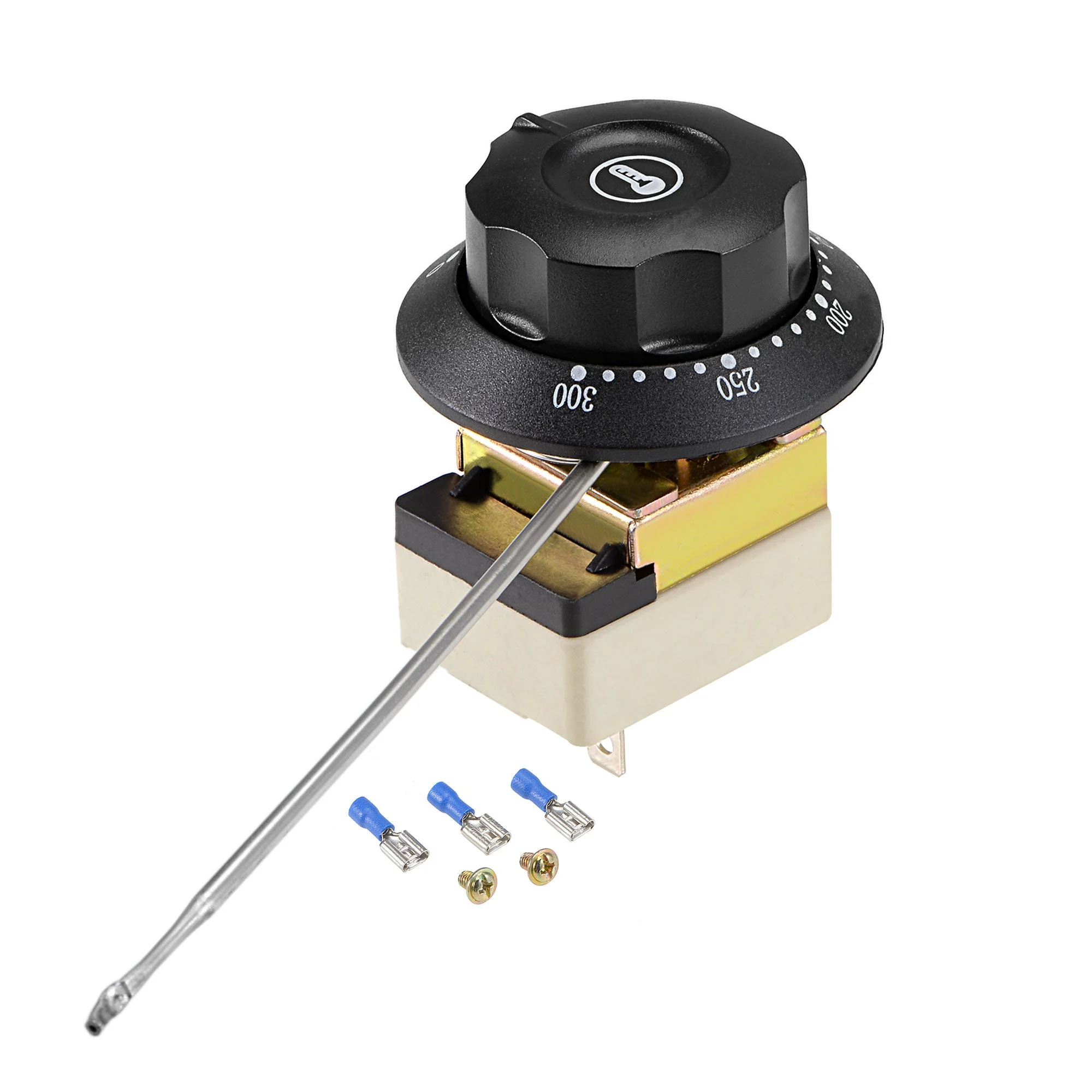

1NO 1NC 250V 16A 50-300C Capillary Thermostat 0.7m 2 Screw&3 Crimp Terminal

About this item

• Power: 250V 16A
• Temperature : 50-300C, Terminals : 3 ; Probe Size :4x70mm/0.16 x2.75 inch(D*H); Wire Length : 0.7m/2.3ft
• Widely used in home appliance and electrical equipment, such as beverage /refrigerator/fridge/defrost,wine cooler/refrigerator,radiator heater,water heater,oven,fan,boiler,etc.
• Please Note : The liquid expansion temperature controller adopts the working principle of thermal expansion and cold contraction, and its accuracy will not be particularly high. For those with high requirements for accuracy, please choose digital display thermostat.
• Package Content :1 x Electric Oven Thermostat; 2 x Screws ; 3 x Crimp Terminals

Specification:
Product Name : Electric Oven Thermostat
Material: Metal, Plastic
Temperature Range : 50-300
Power: 250V 16A
Contact Type : NO NC
Probe Size : 4x70mm/0.16 x2.75 inch(D*H)
Wire Length : 0.7m/2.3ft
Total Size : 43 x 34 x 29mm/1.69 x 1.34 x 1.14inch(L*W*H)
Shaft Size : 6 x 21.5mm/0.24 x 0.85inch(D*H)
Screws:
Size : M4*7.5mm

Package Content :
1 x Electric Oven Thermostat
2 x Screws
3 x Crimp Terminals
