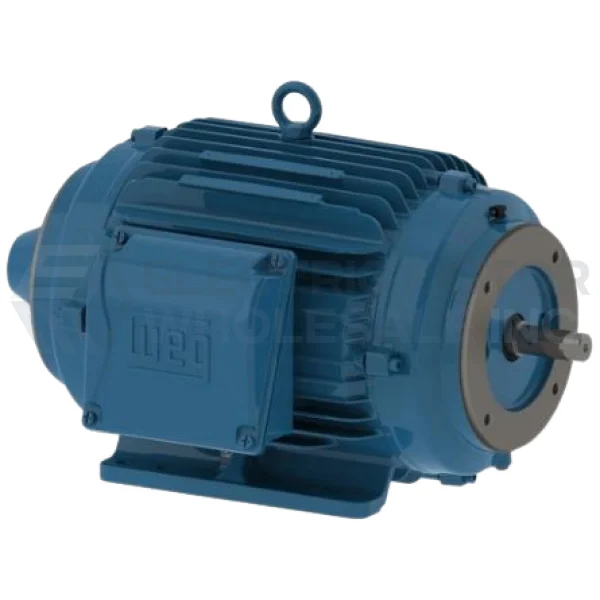

WEG Three Phase Vector Duty Motors are designed specifically for inverter operation, allowing its use in applications requiring 1000:1 constant torque turndown ratio.
Applications: Conveyors, Crane and hoists, Extruders, Metal Processing and any that would require constant torque over a wide speed range
Features:
- NEMA Premium Efficiency
- Constant torque operation from 0 to base speed (1000:1) on PWM Vector Drive
- Constant Horsepower operation up to 150% base speed
- Ready for encoder mount
- Totally Enclosed Non-Ventilated
- With thermostats (1 per phase) 155°C
- Ready for C-face brake, limited to 10lb-ft braking torque
- Class F insulation (Impregnation Resin and Magnet wire are class H)
- Stainless Steel Nameplate – Laser etched with high contrast background. Special nameplate data for easy drive set-up.
- Spike Resistant Wire
- Gasketed conduit box
Specifications
|
Brand: |
WEG |
|
Application: |
Vector Duty |
|
Output HP: |
1 |
|
Output KW: |
0.75 |
|
Output RPM: |
1760 |
|
Frame Size NEMA: |
143/5TC |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
IC410 – TENV |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
230/460 |
