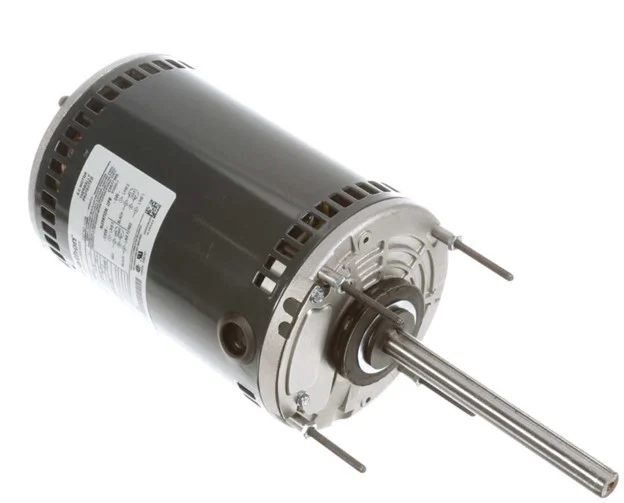

APPLICATIONS: Direct drive condenser fan mounted vertically, shaft up or horizontal. This motor needs to be mounted within the airflow of the fan for proper cooling.
PERMANENT SPLIT CAPACITOR: Operates similarly to capacitor-start motors, but there is no centrifugal starting switch and what correspond to the “start” windings (second windings) are permanently connected to the power source (through a run capacitor), along with the run windings. PSC motors are frequently used in air handlers, blowers, and fans (including ceiling fans) and other cases where variable speeds are desired.
FEATURES:
- Capacitor not included
- Enclosed shaft end bracket with vented frame
- Horizontal or Shaft Up mounting
- Single speed design
- Ball bearings
- 30” long leads
- Shaft slinger
- 40°C ambient
- Flat & keyway on shaft
- UL Recognized and CSA Certified
Specifications
|
Application: |
Condenser Duty |
|
Output HP: |
1 |
|
Output KW: |
0.75 |
|
Output RPM: |
825 |
|
Frame NEMA: |
56Z |
|
Mount NEMA: |
Vert. Shaft Up |
|
Enclosure NEMA: |
DPAO |
|
Voltage: |
200-230/460 |
|
Frequency (Hz): |
60 |
|
Efficiency: |
59 |
