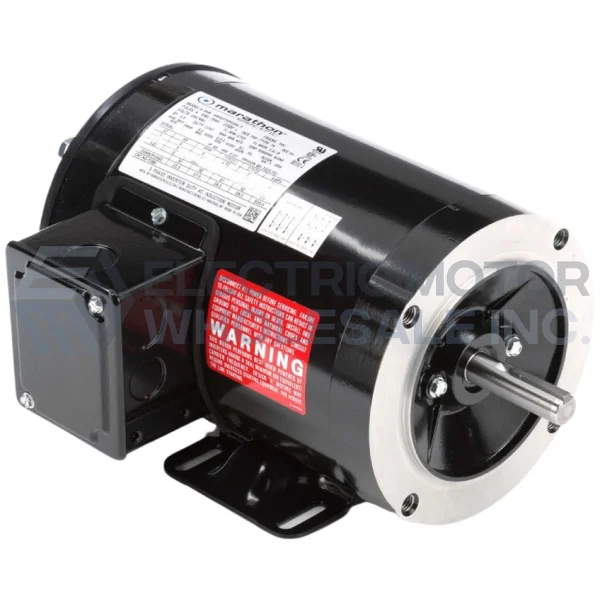

APPLICATIONS: Designed for inverter or vector applications where up to a 1000:1 Constant Torque speed range is required. Typical uses include: material handling, machine tools, conveyors, crane and hoist, metal processing, test stands, pumps compressors, textile processing, and other industrial machinery installed in dusty or dirty environments.
FEATURES:
- MAX GUARD® Class F insulation system
- Constant Torque operation from 0 to base speed on Vector Drive
- Constant Horsepower operation up to twice base RPM
- Continuous duty at 40ºC ambient
- Optimized for operation with IGBT inverter (NEMA Design A)
- Normally closed thermostats (one per phase, Class F)
- Bolt-on removable base for footless mounting option
- Ball Bearings
- Encoder and brake provisions included on opposite drive end (maximum 10 lb-ft brake)
- UL Recognized, CSA Certified, and CE Mark
- Footnotes: S,6,13
Specifications
|
Brand: |
Marathon |
|
Application: |
Vector Duty |
|
Output HP: |
1 |
|
Output KW: |
0.75 |
|
Output RPM: |
1725 |
|
Frame Size NEMA: |
56C |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
TENV |
|
Enclosure IEC: |
IP43 |
|
Voltage: |
230/460 |
