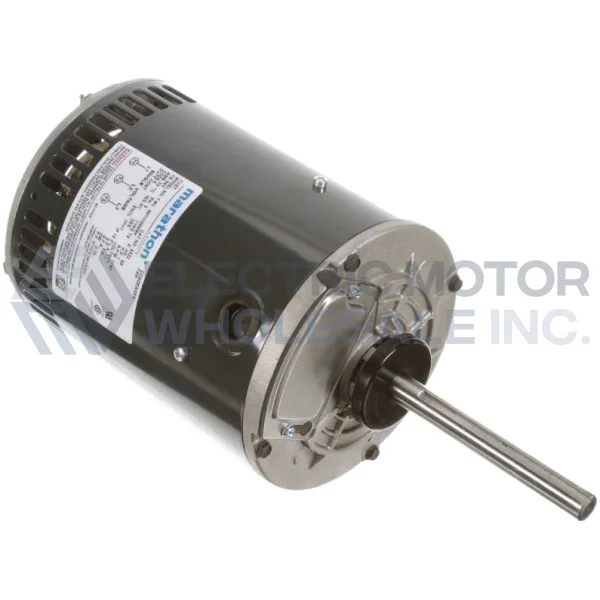

APPLICATIONS: May be installed outdoors. This motor needs to be mounted within the airflow of the fan for proper cooling. Used on Trane, Carrier, Climatrol and York units, 5 tons and larger.
FEATURES:
- Automatic Protector (under locked rotor only)
- 70°C ambient
- Enclosed shaft end bracket, vented frame
- Double sealed ball bearings
- Threaded lead exit
- 4 Locating screws 90 degrees apart, 3.33” from outer edge of shaft slinger
- Hubs on both ends will accept resilient base kits
- UL Recognized and CSA Certified
- External shaft slinger
Specifications
|
Brand: |
Marathon |
|
Application: |
Condenser Fan |
|
Output HP: |
1 |
|
Output KW: |
0.75 |
|
Output RPM: |
1140 |
|
Frame Size NEMA: |
56Y |
|
Mount NEMA: |
Belly Band |
|
Enclosure NEMA: |
OPAO |
|
Enclosure IEC: |
IP10 |
|
Voltage: |
575 |
