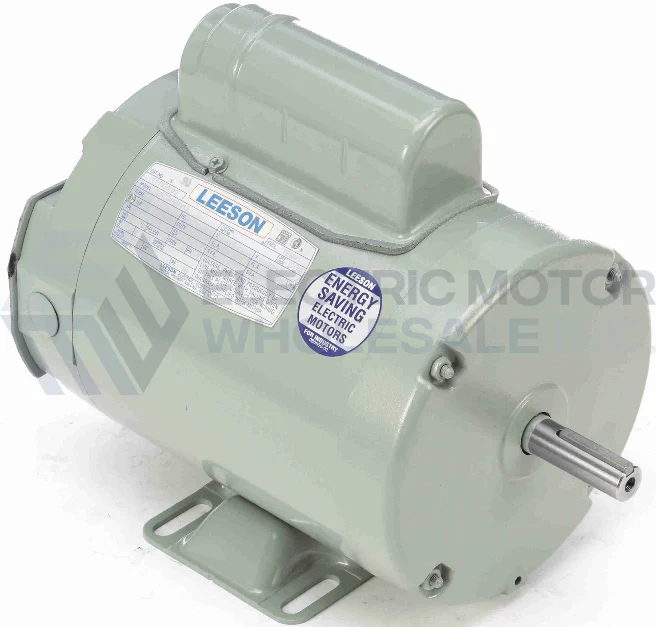

LEESON Aeration Fan Motor is a totally enclosed air over motor, dust tight, suitable for shaft mounted fans and are designed to be used within the airflow of the driven fan. These motors offer protection from the environment and are finished in epoxy enamel to resist corrosion in tough atmospheres.
FEATURES:
- Made in USA
- Durable rolled steel frame
- Standard 5/8” diameter shaft with keyway plus 3/4” deep hole drilled and tapped to 1/4-20 UNC in end of shaft to facilitate mounting of some fan blades
- Suitable for shaft mounted fans
- Capacitor start
- 1.00 Service Factor
- Designed to run in the airflow of the driven fan
- Epoxy enamel finish to resist corrosion
- Ball bearing designs
Specifications
|
Application: |
HVAC |
|
Output HP: |
1 |
|
Output KW: |
0.75 |
|
Output RPM: |
3450 |
|
Frame NEMA: |
56Z |
|
Mount NEMA: |
Base Mount |
|
Enclosure NEMA: |
TEAO |
|
Enclosure IEC: |
IP43 |
|
Voltage: |
115/208-230 |
|
Frequency (Hz): |
60 |
