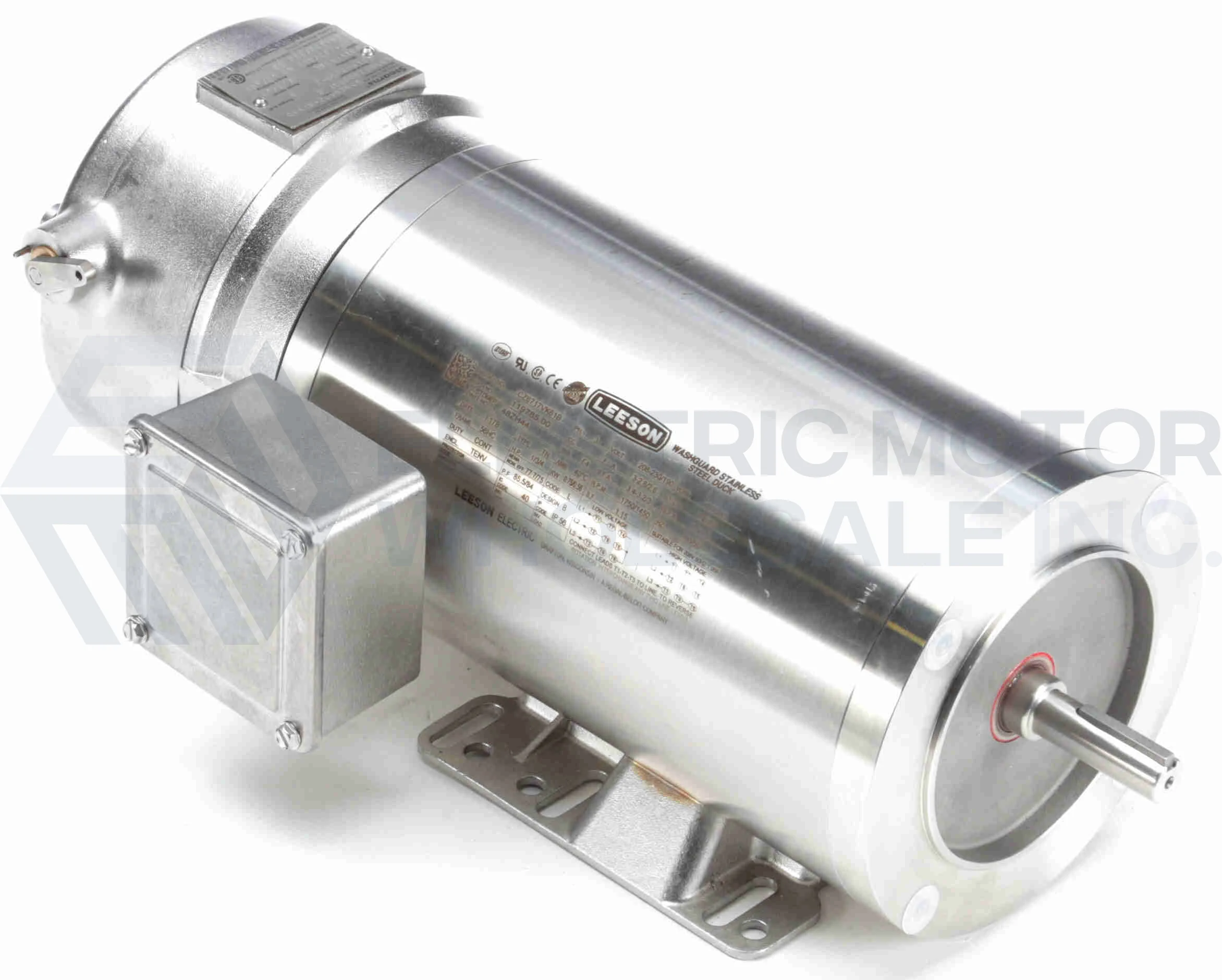

1HP LEESON 1750RPM 56HC TENV 3PH STAINLESS WASHDOWN BRAKE MOTOR 119785.00

LEESON Stainless Brakemotor is a positive, stop and hold brakemotor for use in washdown applications. Ideal for use in clean room and severe chemical-processing applications involving frequent washdown with nitric acid and caustic lye.

Brakes are spring set. Load is stopped automatically when power is turned off. Featuring a power off manual release for convenience, and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by Stearns.

Features:

• Made in USA
• NEMA Premium efficiency with a three year warranty
• 5/8″ Keyed output shaft
• Combination 56H base has mounting holes for 56 and 143-5T
• All exterior components are 300-series stainless steel.
• Heavy duty 12G stamped base
• Nothing on the motor’s exterior is painted or coated in any way.
• Interior coatings applied to rotor and stator protect against corrosion.
• All sealing components are Viton® for superior chemical resistance.
• Buna-N gaskets and Viton shaft seals (both ends for TEFC motors)
• IRIS Inverter rated insulation system
• Full fact nameplate is laser etched on the motor frame – no separately attached nameplate to trap dirt or contaminants.
• Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life.
• Four condensate drains in each endshield
• Moisture resisitant sealant between frame and endshields excludes water
• Split conduit box design with rubber gasket for better sealing

Standards and Approvals:

• Single and three phase motors are UL component recognized – file number E57948, guide number PRGY2.
• CSA Energy Efficiency Verification Program, report number EEV 78720-1.
• Construction is CSA Certified for safety report LR33543
