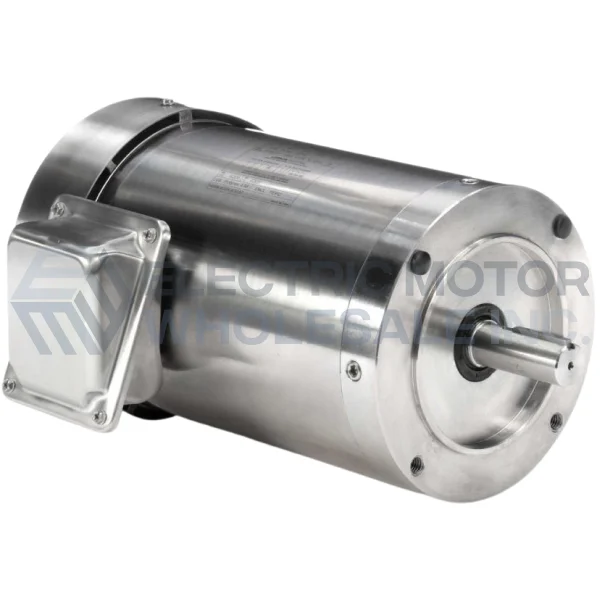

LEESON Three Phase Washguard SST Stainless Duck Motor is designed for long life in demanding washdown applications. Built with all stainless steel external components and well sealed against moisture and condensation, these all-stainless motors are able to withstand the severe washdown environments found in the food processing, chemical processing, and beverage industries.
Features:
- NEMA Premium efficiency rating with a three year warranty
- Durable all-stainless construction
- 7/8″ Keyed output shaft with seal
- C-face mounting provisions less base
- 300 series stainless steel exterior components
- Anti-corrosion coating applied to rotor and stator
- Moisture resistant sealant between frame and endshields
- Laser etched full-fact nameplate
- Double sealed bearings
- Split conduit box design with flanged cover and rubber gasket
- Four condensate drains
- Inverter duty IRIS insulation
- BISCC Certified for the baking industry
Specifications
|
Brand: |
Leeson |
|
Application: |
Washdown Stainless |
|
Output HP: |
1//0.75 |
|
Output KW: |
0.75//0.56 |
|
Output RPM: |
1750//1450 |
|
Frame Size NEMA: |
143TC |
|
Mount NEMA: |
C Face No Base |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
208-230/460//190/380 |
