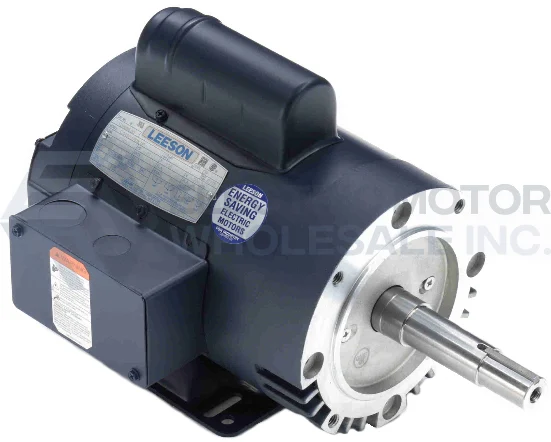

LEESON JM Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions. All motors have a rigid mounting base and NEMA JM pump shaft.
FEATURES:
- Made in USA
- Durable rolled steel frame
- Capacitor Start
- High efficiency copper windings with NEMA 1.15 service factors
- UL and CSA recognized designs
- Cooling air exhausts at the shaft end for maximum cooling
- Locked bearing on shaft end limits axial shaft movement
- Uses drip cover kit 175004.00
- Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Specifications
|
Application: |
Close-Coupled Pump |
|
Output HP: |
1 |
|
Output KW: |
0.75 |
|
Output RPM: |
1740 |
|
Frame NEMA: |
143JM |
|
Mount NEMA: |
C-Face With Base |
|
Enclosure NEMA: |
ODP |
|
Enclosure IEC: |
IP22 |
|
Voltage: |
115/208-230 |
|
Frequency (Hz): |
60 |
