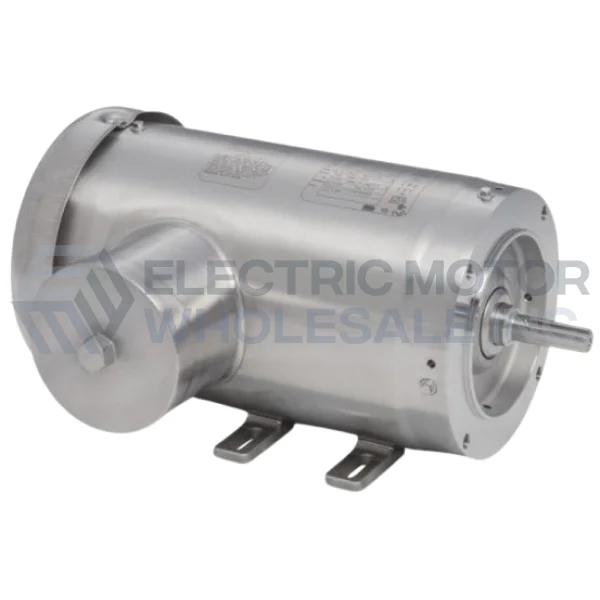

Baldor Food Safe Stainless Steel Motors are designed for food processing where reliability and cleanability are of utmost importance in an intense, caustic cleaning environment. Designed to perform reliably- at maximum efficiency- around the clock and be effectively cleaned to a hygienic level to ensure uncompromised food safety.
Cleanability
- Smooth contours and finish with a rotatable, round conduit box allows water and debris to shed from the housing
- Independent feet allow the motor to be effectively and efficiently cleaned
Flexibility & safety
- Our rotatable conduit box eliminates the need to reorient the motor to match power supply
- Color-coded leads are easily identifiable and make connection safer and easier
- Lifting provisions on 180 – 280 frame allow for easier and safer maneuvering
Features
- Epoxy encapsulated windings and conduit box
- Two-barrier mechanical seal on the output shaft
- 360 rotatable conduit box (Three phase)
- Laser marked nameplate
- Polished stainless steel finish
- 3 year warranty
Specifications
|
Brand: |
Baldor |
|
Application: |
Washdown Stainless |
|
Output HP: |
1 |
|
Output KW: |
0.75 |
|
Output RPM: |
1155 |
|
Frame Size NEMA: |
56C |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP69 |
|
Voltage: |
230/460 |
