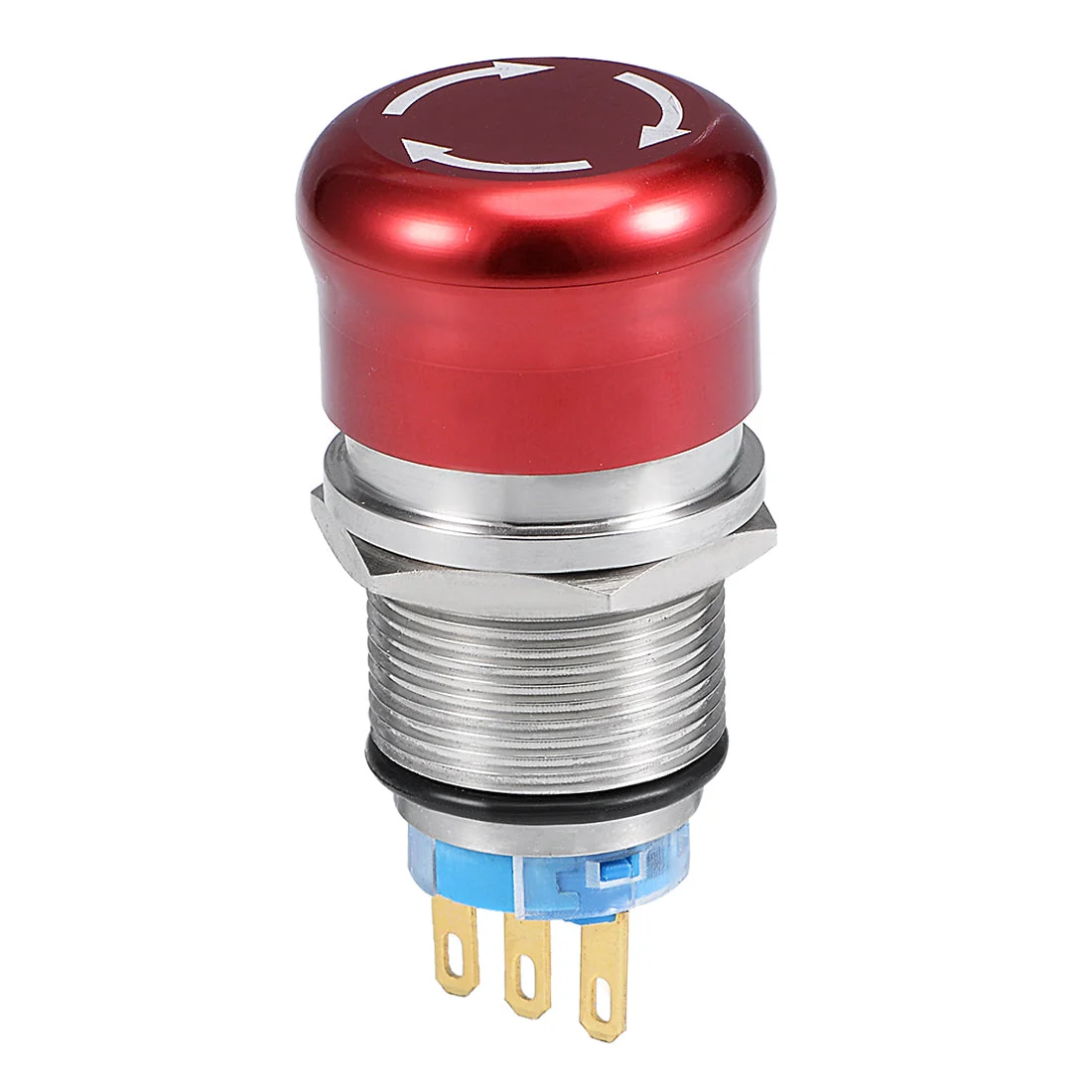

19mm Mounting Hole Metal Latching Emergency Stop Push Button Switch NO NC Red

About this item

• Item Name: Emergency stop Push Button; Operation Type: Latching; Contact Type: DPST 1 NO 1 NC;2.(Rated) Voltage & Current: AC 250V 5A
• Mounting Hole Dia: 19mm / 0.75″; Button Diameter: 2.4cm /0.94″;Terminals Quantity: 3
• Fit Panel Thickness(Adjustable): Max 8mm / 0.31″;Package Content: 1 x Push button Switch; Light Voltage: no light include
• The shell is made of 304 stainless steel, with corrosion resistance, heat resistance and durability; The contact is made of silver tin oxide with strong conductivity. The bottom is made of flame-retardant substrate with high temperature resistance
• Used widely to control the equipment, contactor, relay and other automatic control electric circuits.

1NO 1NC (DPST) contact type, red round head, Latching action, 19mm panel cutout diameter.Push to stop and lock, twist to reset.

For emergency stop in industry with the conspicuous red mushroom cap.Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
