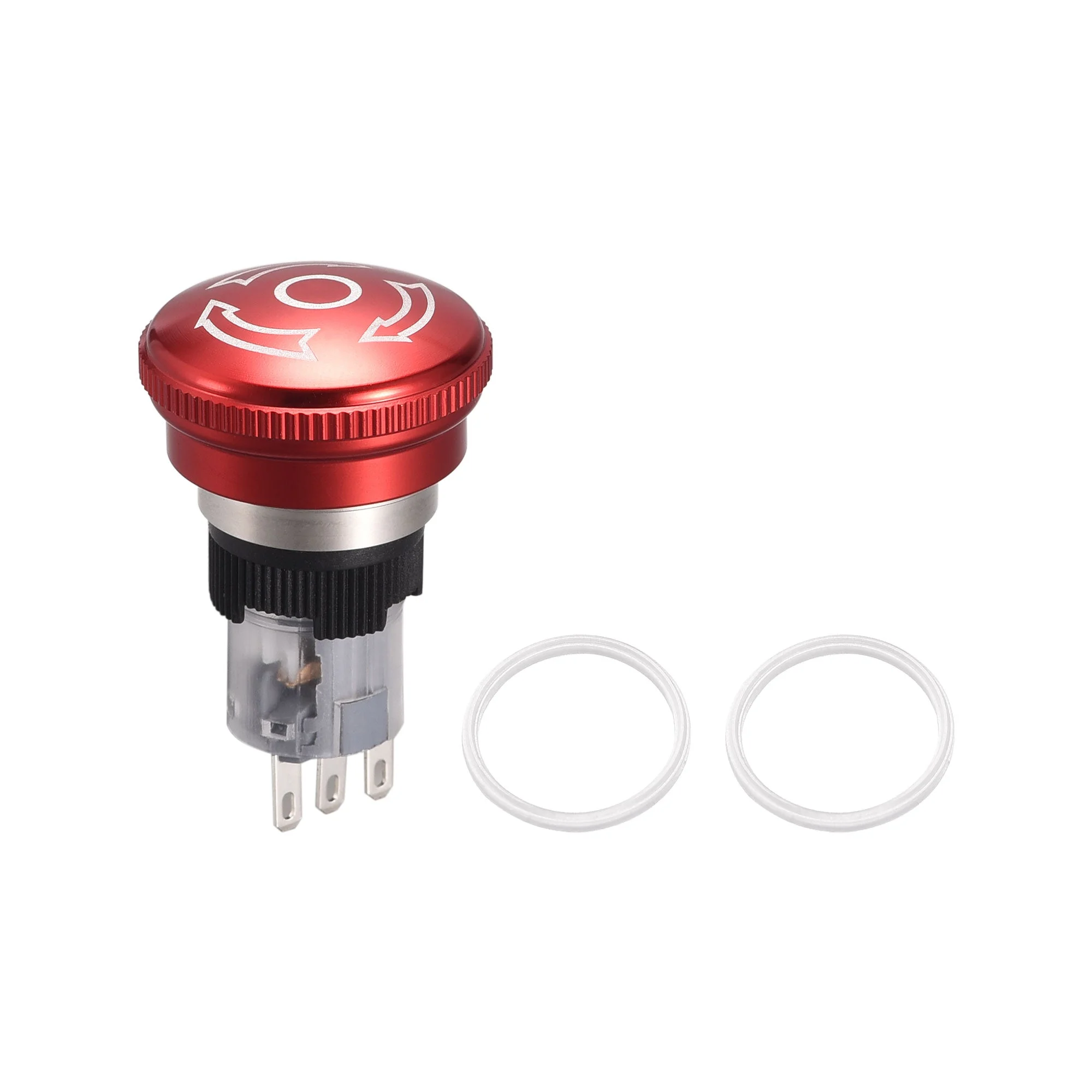

16mm Mounting Latching Emergency Stop Push Button Switch AC250V 5A 1NO 1NC

About this item

• Product Name: Emergency stop Push Button; Operation Type: Latching; Contact Type: 1 NO 1 NC
• Rated Voltage&Current: AC250V/ 5A；Push to stop and lock, twist to reset.
• Mounting Hole Dia: 16mm / 0.39″ ; Terminals Quantity: 3; Main Color: red
• Overall Size: 50*30*30mm(L*W*H); Package Content: 1 x Push button Switch
• Widely used in lathe, CNC machine tool, laser cutting machine, elevator and other control circuit emergency stop, suitable for the design and replacement of control panel and electrical box

Description:
1NO 1NC contact type, red round head, Latching action, 16mm panel cutout diameter.
Push to stop and lock, twist to reset.
For emergency stop in industry with the conspicuous red mushroom cap.Used widely to control the electromagnetic , contactor, relay and other automatic control electric circuits.

Specification:

Rated Voltage&Current: AC250V/ 5A
Action Type: Latching (Self-Locking)
Contacts Type: 1NO 1NC
Terminals Quantity: 3
Panel Mounting Diameter: 16mm / 0.39″
Overall Size: 50*30*30mm(L*W*H)

Package Content:

1 x Push button Switch
