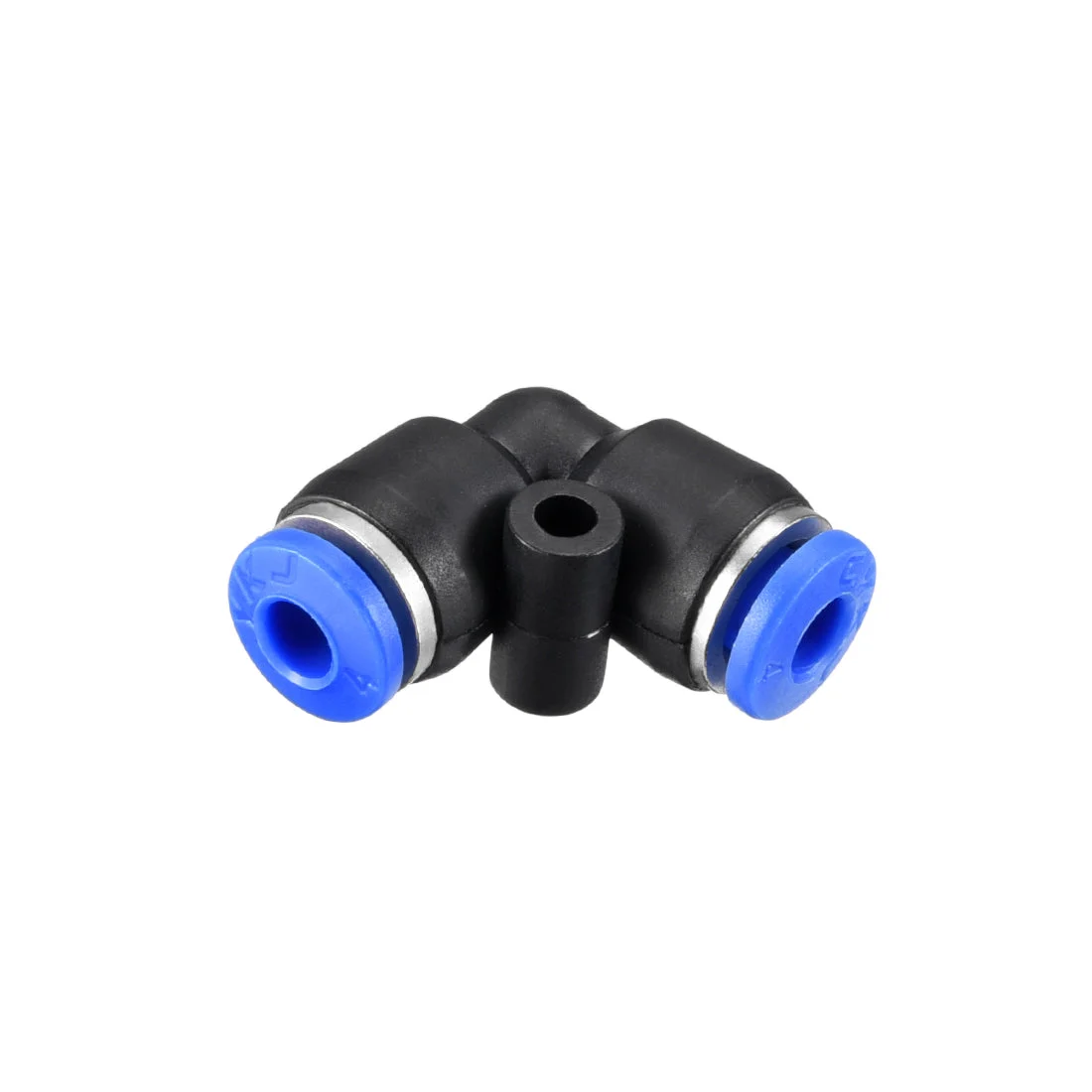

15X Push to Connect Fittings 4mm or 5/32″ od Tube Fittings Blue

About this item

• 【UNIVERSAL DESIGN】- Product Name : Elbow Connect Fitting ; Type: 90 Deg Swivel Elbow Connector ; Tube Size : 4mm – 4mm Tube OD – 5/32″ Tube OD
• Operating Pressure : 0-1MPa ; Operating temperature：-10 – 60 Degree Celsius
• 【GOOD DESIGN】- Push-to-connect tube connection on two end .A good release cap can withstand greater and stronger pressure without tripping.
• 【ADVANTAGE】- This Air fitting Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• 【APPLICATION】- Elbow Air Fitting has Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

Product Features:

Product Name : Connect Fitting

Model : PV4

Type: 90 Deg Swivel Elbow Connector

Tube Size : 4mm – 4mm Tube OD – 5/32″ Tube OD

Operating Pressure : 0-1MPa

Operating temperature:-10 – 60 Degree Celsius

Material : Plastic

Color : Black,Blue

Dimension : 23mm x 23mm x 11mm / 0.9-inch x 0.9-inch x 0.43 -inch(L x W x H )

Net Weight : 44g

Package Content:

15pcs x Fitting

Description:

1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

2.A good release cap can withstand greater and stronger pressure without tripping.

3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

4.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.

5.The small tube is used for fixed.

Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can’t pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
