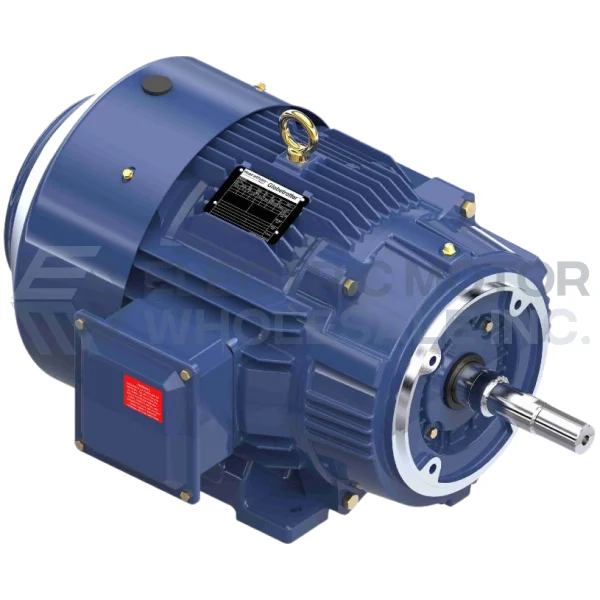

APPLICATIONS: Close-coupled pump where the pump impeller is mounted directly on the motor shaft in environments that are relatively clean and dry.
FEATURES:
- Meets or exceeds NEMA Premium® efficiency
- Model is in compliance with EISA2007
- Class F Insulation
- Dual frame mounting holes
This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
Specifications
|
Brand: |
Marathon |
|
Application: |
Closed Coupled |
|
Output HP: |
15//10.0 |
|
Output KW: |
11.2//7.50 |
|
Output RPM: |
1772//1478 |
|
Frame Size NEMA: |
254JM |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
230/460//190/380 |
