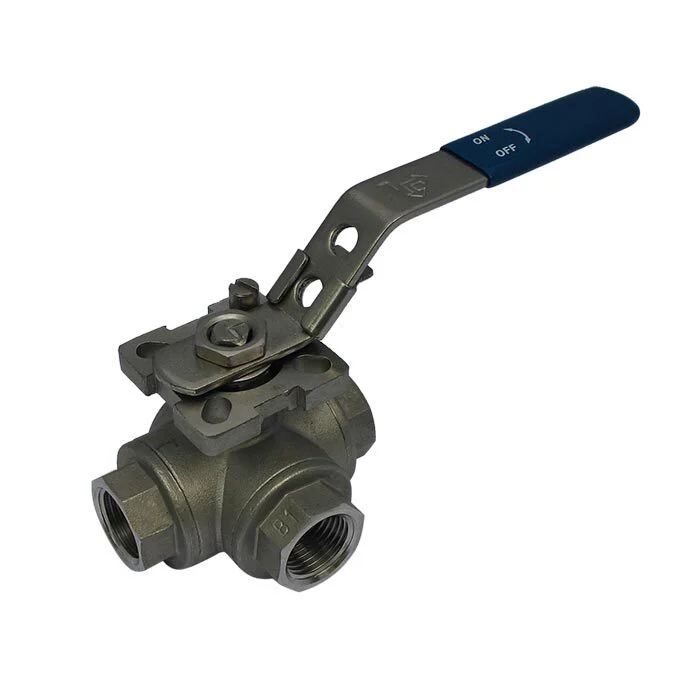

3-Way (L-bore) ball valve of stainless steel from JP Fluid Control with G3/4 inch pipe threads (BSPP) and a nominal diameter of 15mm. The valve features an ISO-Top flange and has furthermore a coated lever for manual control. The ball valves in the 144L-series of JP Fluid Control are characterized by long life.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | 144L |
| Function | 3-way (L-bore) |
| Diagram | The ports overlap during rotation. |
| Ports | G3/4 BSP (F/F/F) |
| Housing | Stainless steel (AISI 316) |
| Ball | RVS (AISI 316) |
| Seals | PPL (Polypropylene) |
| Nominal Diameter | 15 mm |
| Kv value | 6 m3/h |
| Operation | Lever + ISO 5211 flange (for actuator mounting) |
| ISO 5211 flange | F04 and F05 |
| Max pressure | 63 bar |
| Temperature | -50°C .. 250°C |
Installation
The valve has female thread on all three ports (3/4 inch). This is BSPP (British Standard Pipe Parallel). With our range of
Maximum pressure versus temperature – 144L-series.
Specifications
Connection size : 3/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Seal material : Polypropylene (PP)
Ball bore : L-port
Kv value [m3/h] : 6
Max pressure difference at 20 °C (bar) : 63
Min temperature (°C) : -50
Max temperature (°C) : 250
Valve bore (mm) : 15
Material quality : Stainless steel 316 (1.4401)
ISO 5211 Flange type : Flange F04,Flange F05
Article compression class : PN 63
Full bore : No
Material ball : Stainless steel
Material ball seal : Polypropylene (PP)
Medically clean : No
Secondary spindle seal material : FKM (FPM)
Spindle seal material : FKM (FPM)
