About this item

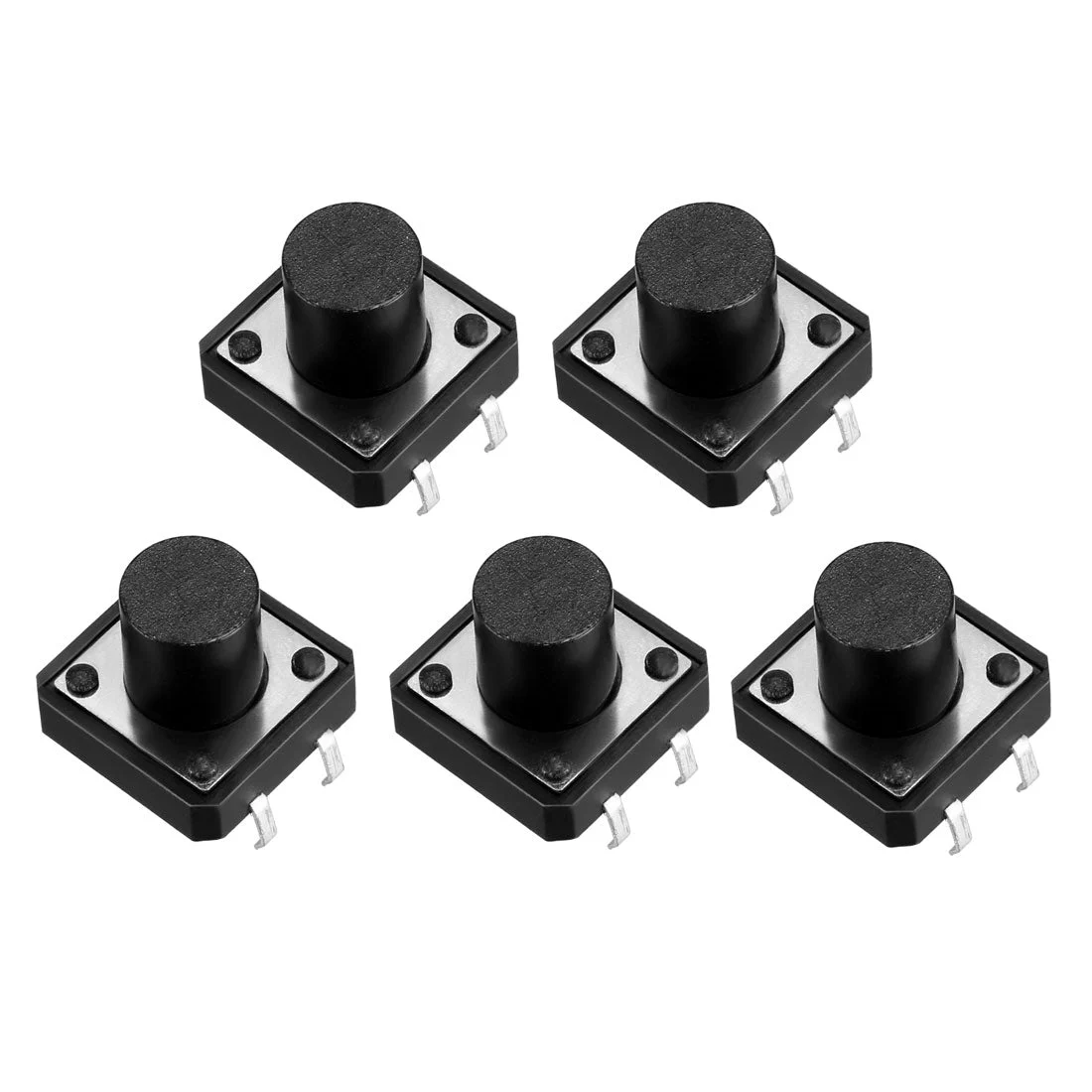

- Product Name: Push Button Switch
- Rated Load: DC12V 50mA
- Withstand Voltage: AC250V
- Pin Number: 4
- Dimension: 12x12x10mm/0.47*0.47*0.39inch(L*W*H)
Feature momentary contact, 4 pins, black square push button, through hole mounting.
Used in the fields of electronic products, household appliances and more.
High precision mechanism design offers acute operation and long service life.
Specification:
Terminals Number: 4
Temperature: -25~70C
Withstand voltage: AC250V
Rated load: DC12V 50mA
Contact resistance: less than 0.03 Ohm
Insulation resistance: More than 100M Ohm
Dimension: 12x12x10mm/0.47*0.47*0.39inch(L*W*H)
Weight: 6g
Package included:
5pcs x Tact Switches
