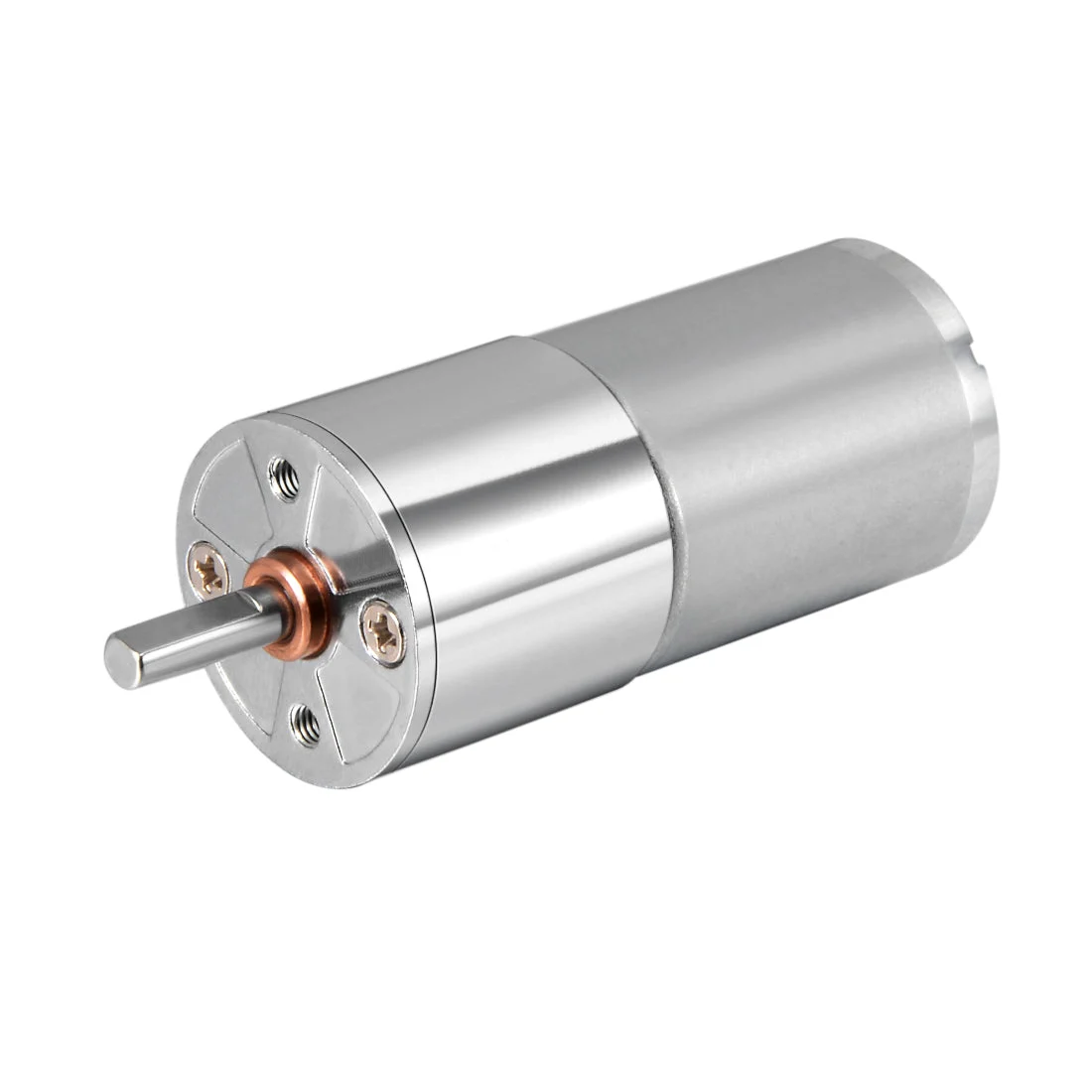

12V DC 55 RPM Gear Motor High Torque Electric Reduction Gearbox Centric Output Shaft

About this item

• No-load Speed: 55RPM at 12 Volts; Torque: 3.5kg.cm;
• No-load Current: 0.15A; Load Current: 0.6A; Reduction rate: 1: 98;
• D Shaft Size: 12mm x 4mm/0.47 x 0.16 inches (L*D);
• Gearbox Size: 22mm x 25mm/ 0.87 x 0.98 inches (L*D);
• Motor Size: 30mm x 24mm/1.18 x 0.94 inches (L*D).

This is our new low cost, but extremely DC Gear Motor.
Specification:
No-load Speed: 55RPM at 12 Volts;
kg.cm: 3.5;
Power: 4.8W;
No-load Current: 0.15A;
Load Current: 0.6A;
Reduction rate: 1:98
D Shaft Size: 12mm x 4mm/0.47 x 0.16 inches (L*D);
Gearbox Size: 22mm x 25mm/ 0.87 x 0.98 inches (L*D);
Motor Size: 30mm x 24mm/1.18 x 0.94 inches (L*D);
