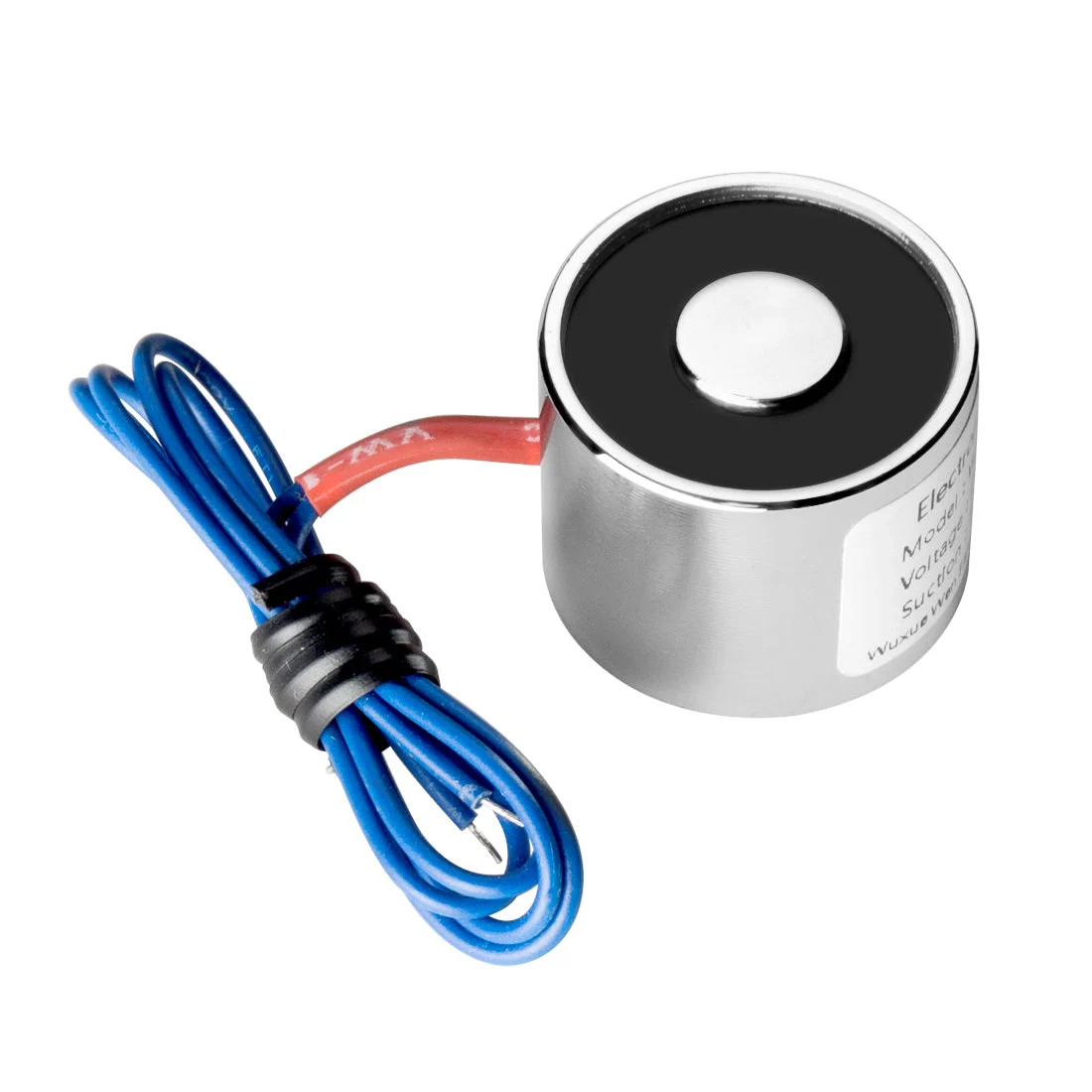

12V DC 50N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

About this item

• Input Voltage: 12V DC ;Peak Force :50N; Holding Force :37N; Duty-cycle (ED%) : 50%; Thread size : M4*6Electric time:Less than 7 minutes ;
• Overall Size : 25 x 20 mm / 1 x 0.8 inch(Dia. *T)
• Use QA-1/155 Varnished Wire, withstand high temperature up to 155C, better than the QA-1/130 in the market
• Use UL1332 lead wire, non-deformation withstand high temperature up to 155C
• Use PA66GF30 nylon plastic for framework; high temperature resistance 4. Materail: pure iron

Feature:

Electric lifting magnet

Powerful and compact

Smooth and flat surface

Low consumption and reliable

Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note:The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.

It is recommended that the actual force is less than 80% of the sucked force on the name plate.

Specification:

Material: Metal

Input Voltage: 12V DC

Peak Force :50N;

Holding Force :37N;

Duty-cycle (ED%) : 50%;

Electric time:Less than 7 minutes ;

Overall Size : 25 x 20 mm / 1 x 0.8 inch(Dia. *T)

Thread DIA : 4mm

Lead Length : 24cm/9. 5 inch

Package Includes:

1 x Holding Electromagnet
