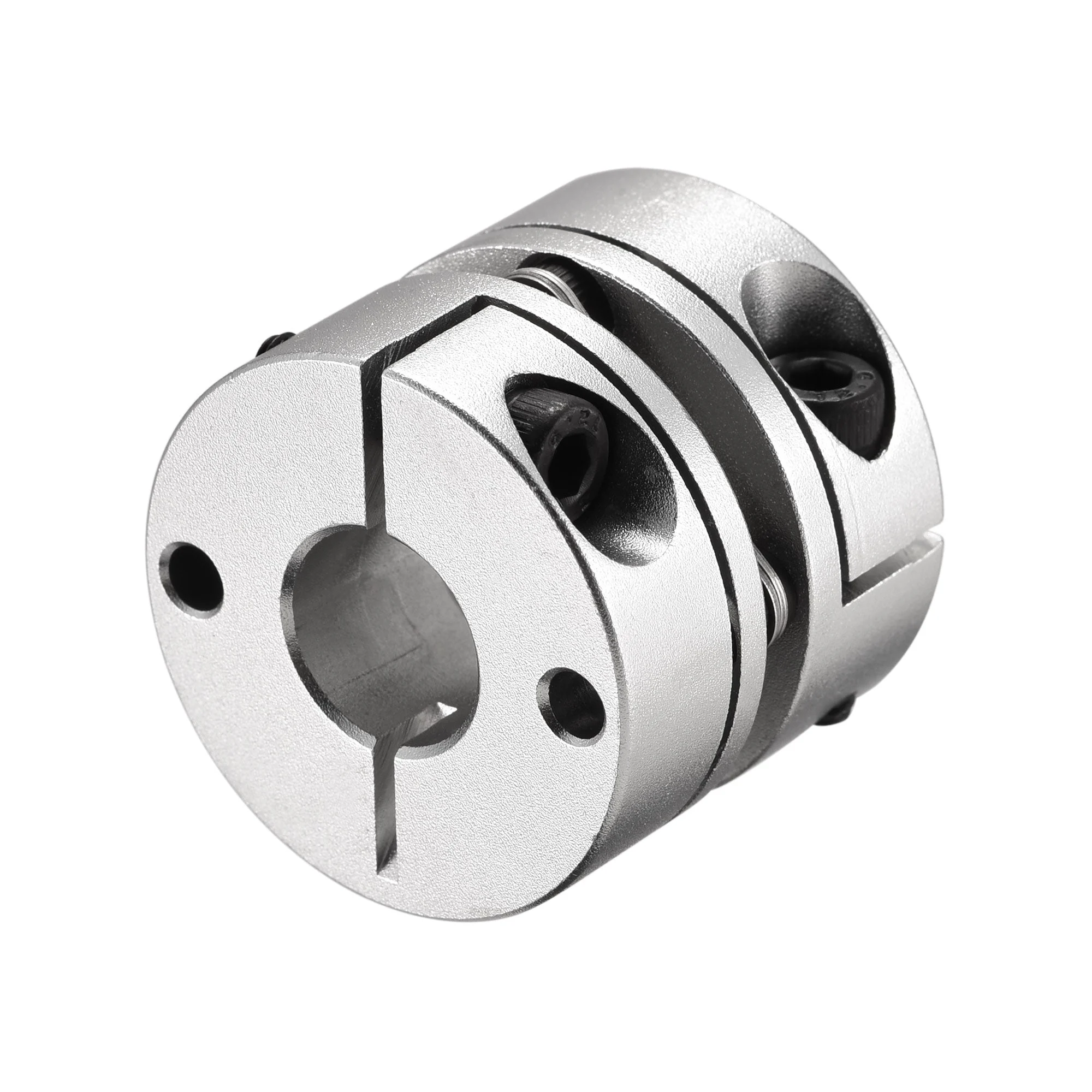

About this item
- 32mm Diameter X 29mm Length; 10000RPM rotational speed.
- The diaphragm coupling adapt to high temperature (- 80 degrees celsius + 300 degrees celsius) and can operate safely under shock and vibration conditions.
- Shaft couplers suitable for connect servo motor, stepper motor, encoder, screw driving, machine platform, etc.
- Large flexibility, accommodates angular and parallel misalignment.
- Aluminum hubs for light weight, stainless steel discs for strength, simple structure, assembly and disassembly is convenient.
Description:
1. The diaphragm coupling has obvious shock absorption, no noise and no wear.
2. The transmission efficiency of diaphragm coupling is high, up to 99.86%, especially suitable for medium and high-speed high-power transmission.
3. Flexible couplings also are simple structure, light weight and small size, which it is convenient to assembly and disassembly.
4. It can accurately transmit the speed without slip, and can be used for the transmission of precision machinery.
Note: The adapted shaft diameter tolerance is +0~-0.04mm
Specification:
Color: Silver
Length: 29mm
Outside Diameter: 32mm
Bore Diameter: 12mm to 14mm
Max. Torque Range: 2.8N.m
Maximum Rotation Speed: 10000 RPM
Material: Aluminium Alloy and Stainless Steel
Package Content:
1 x Diaphragm Coupling
