About this item

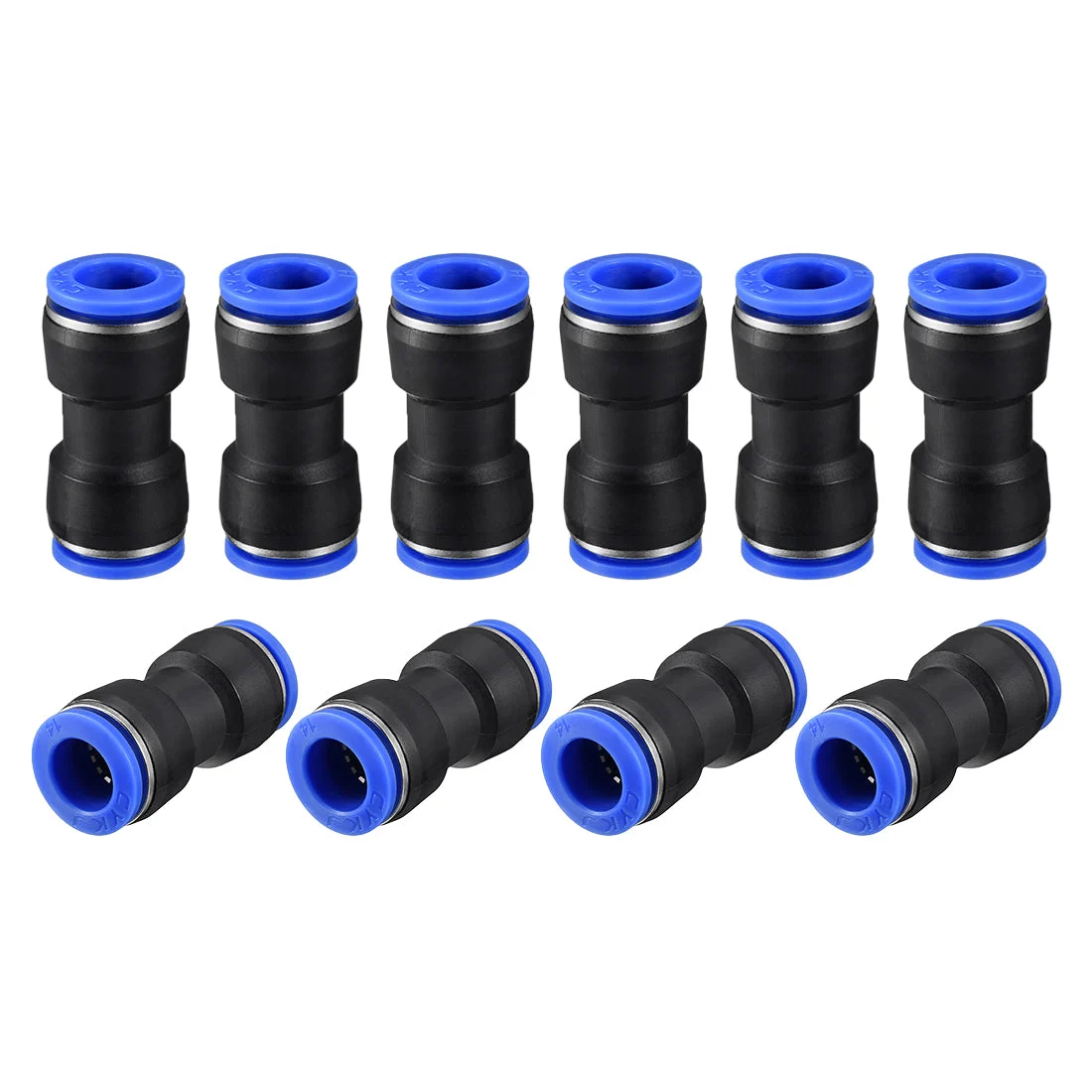

- Pack of 10pcs 14mm OD plastic straight tube fitting; Operating Pressure : 0-1MPa; Operating temperature：-10 – 60 Degree Celsius
- The Push-to-connect end can be rotated 360 degrees even after installation, which is convenient to use and has good sealing performance.
- Push to Connect Fittings designed for using to connect with polyethylene, nylon and PU tubing. Quick and simple installation.
- Push to connect fitting can realize the pipeline together or disconnected without tools, mainly used for air compression systems, vacuum systems, pneumatic systems.
- Note: Make sure that the cutting surface of the pipe is vertical. Please insert the tube into the bottom before use.
Product Features:
Product Name : Connect Fitting
Model : PU-14
Net Weight : 175g
Material : Plastic
Color : Black,Blue
Type: Straight Connector
Two Tube Size (OD) : 14mm = 35/64″
Operating Pressure : 0-1MPa
Operating temperature:-10 – 60 Degree Celsius
Dimension : 55mm x 26mm / 2.17-inch x 1.02-inch (L x D )
Package Content:
10pcs x Fitting
Description:
1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.
2.A good release cap can withstand greater and stronger pressure without tripping.
3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
4.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.
Mounted:
1.Cut the pipe flat, no slope
2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.
3.After plugging in, try to pull the tube, if you can’t pull it out, it means it has been connected.
4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
