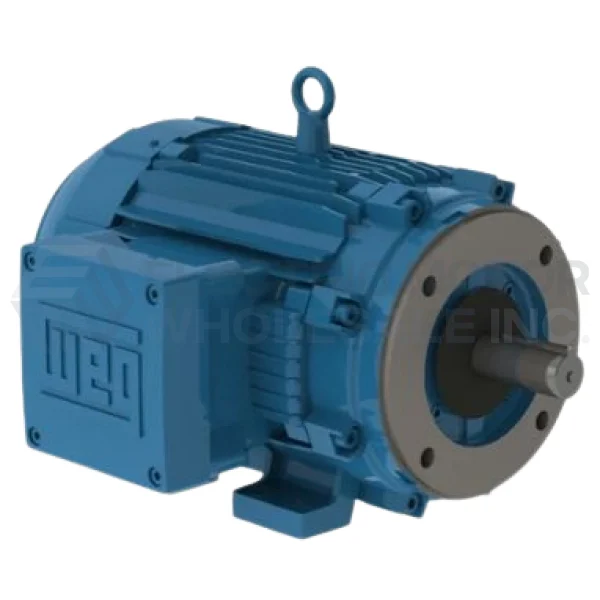

WEG Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.
Features:
- NEMA Premium efficiency rating
- Inverter Rated:
- Variable Torque – 1000:1 Class 1&2
- Constant Torque – 20:1 Class 1&2
- 1 3/8″ Keyed output shaft
- Durable IP55 rated cast iron enclosure
- Class F insulation (impregnation resin and magnet wire are Class H)
- Thermostats
- F1 mounted
- Stainless steel nameplate – laser etched with high contrast background
- Non-sparking fan
- NPT threaded terminal box
- Re-greaseable ball bearings (Frames 254T and up)
- CSA Approved – File LR50962
- Class 1, Division 1, Groups C&D, T3C
- Class 2, Division 1, Groups F&G, T3C
- UL Listed – File E87848
- Class 1, Division 1, Groups C&D
- UL Class 2 motors are now a custom quote with factory lead times. Stock motor label modification are no longer available.
Specifications
|
Brand: |
WEG |
|
Application: |
Explosion Proof |
|
Output HP: |
10 |
|
Output KW: |
7.5 |
|
Output RPM: |
3525//2895 |
|
Frame Size NEMA: |
213/5TC |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
IC411 – TEFC |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
230/460//380 |
