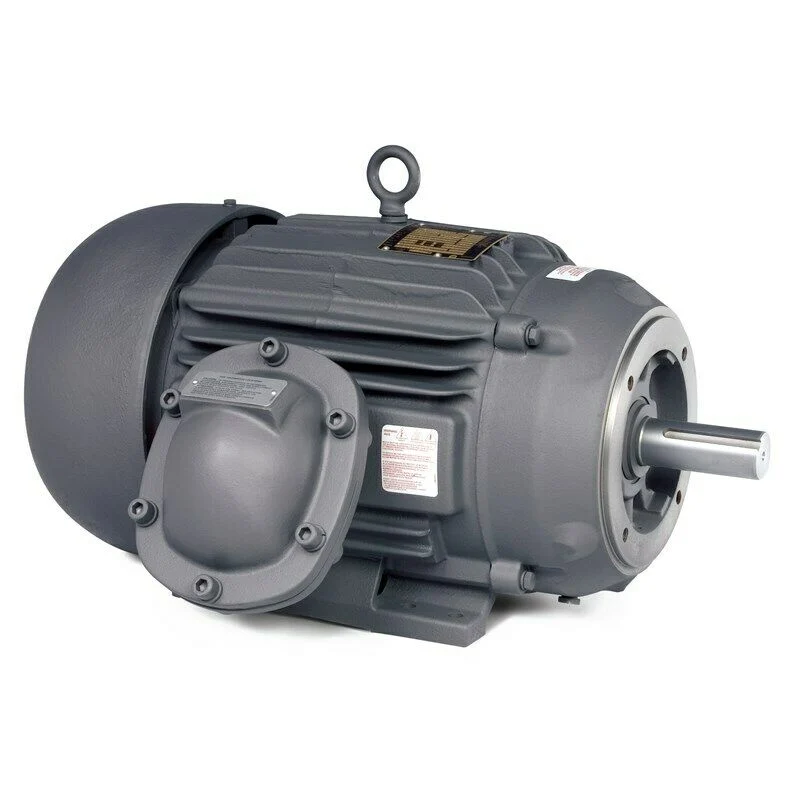

Baldor Explosion Proof Severe Duty Motors are suitable to stand up against the most demanding industrial environments where protection against the elements and condensation is needed.
APPLICATIONS:
- Customer specified Division 1 hazardous areas
- Chemical, oil and gas
- Pulp & paper
- Wastewater
- Fixed and variable speed operation
FEATURES:
- 1.15 service factor
- Class F insulation
- 40°C ambient
- Suitable for 55°C ambient at 1.0 SF
- Group E brass labyrinth shaft slingers installed on both ends of motor
- Normally closed thermostats
- Corrosion resistant epoxy finish
- Threaded lead inlet
- UL breather drains
CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. If internal condensation buildup is a concern for your XP motor application, select a motor that includes UL listed breather drain. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty. Consider Drill Rig Duty Explosion-proof motors for outdoor applications.
Specifications
|
Brand: |
Baldor |
|
Application: |
XP Severe Duty |
|
Output HP: |
10//7.5 |
|
Output KW: |
7.5 |
|
Output RPM: |
1180//980 |
|
Frame Size NEMA: |
256TC |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
XPFC |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
230/460//190/380 |
