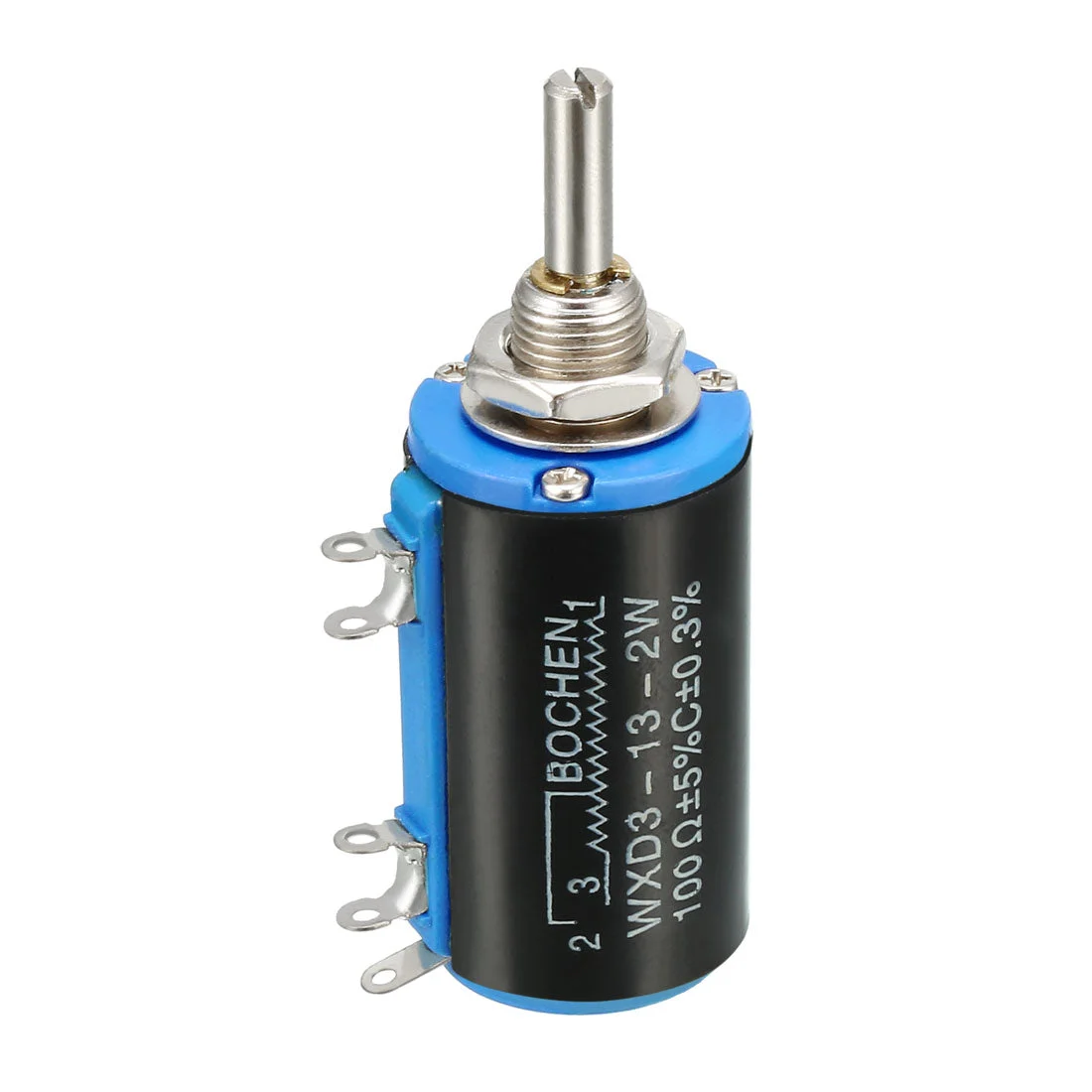

100 Ohm Adjustable Resistors Wire Wound Multi Turn Precision Potentiometer Pots 1pcs

About this item

• Model: WXD3-13,Can be used as a voltage divider, rheostat, current controller
• Resistance Value: 100 Ohm Tolerance:+/-5%
• The role of potentiometers – regulating voltage (including DC voltage and signal voltage) is mainly used in potentiometer instruments, post and telecommunications, power equipment, railway signals, aerospace, aviation
• , easy to weld alloy pins, nickel-plated alloy shaft, flame retardant
• Knurled shaft with split design for push-on knob.（this item do not include Knobs)

• Product Name: Potentiometer w Knob
• Model: WXD3-13
• Resistance Value: 100 ohm
• Power: 2W
• Tolerance: +/-5%
• Type: Wire Wound Multi Turn
• Terminals Number: 5
• Features: Round Shaft
• Total Size: 20.5mm x 57.9mm/0.8 x 2.28 inch (D * H)
• Screw Thread Dia.: 7.8mm/0.3 inch
• Shaft Diameter: 4mm/0.16 inch
• Shaft Length(do not include the Screw Thread parts): 12mm/0.47 inch
• Shaft Total Length: 20mm/0.79 inch
• Package Content: 1 x Potentiometer
• Features: 100 ohm, 5 Terminals, Single Linear, Suits Most Standard Knobs.( this item do not include Knobs)
• Main used to control electrical devices such as volume controls on audio equipment.
• Knurled shaft with split design for push-on knob.
