About this item
- 75mV Voltage Drop and 10A Rated (Maximum) Current, 75mV satisfies most of the DC ammeter.
- Made of Copper with Anti-Rust plated, ensures the performance of stability and durability.
- 0.5% Accuracy and 120% Overload Rated Current(For 2 hours)
- External type. Two holes on both sides for a solid placing, and nuts for the circuit connection.
- Connection. A shunt needs to be placed parallel with the Ammeter(Moving Coil Galvanometer), to bypass the current. Normally, the two outside terminals were connected with the power circuit directly, and both the inside terminals placed in series with the Meter.

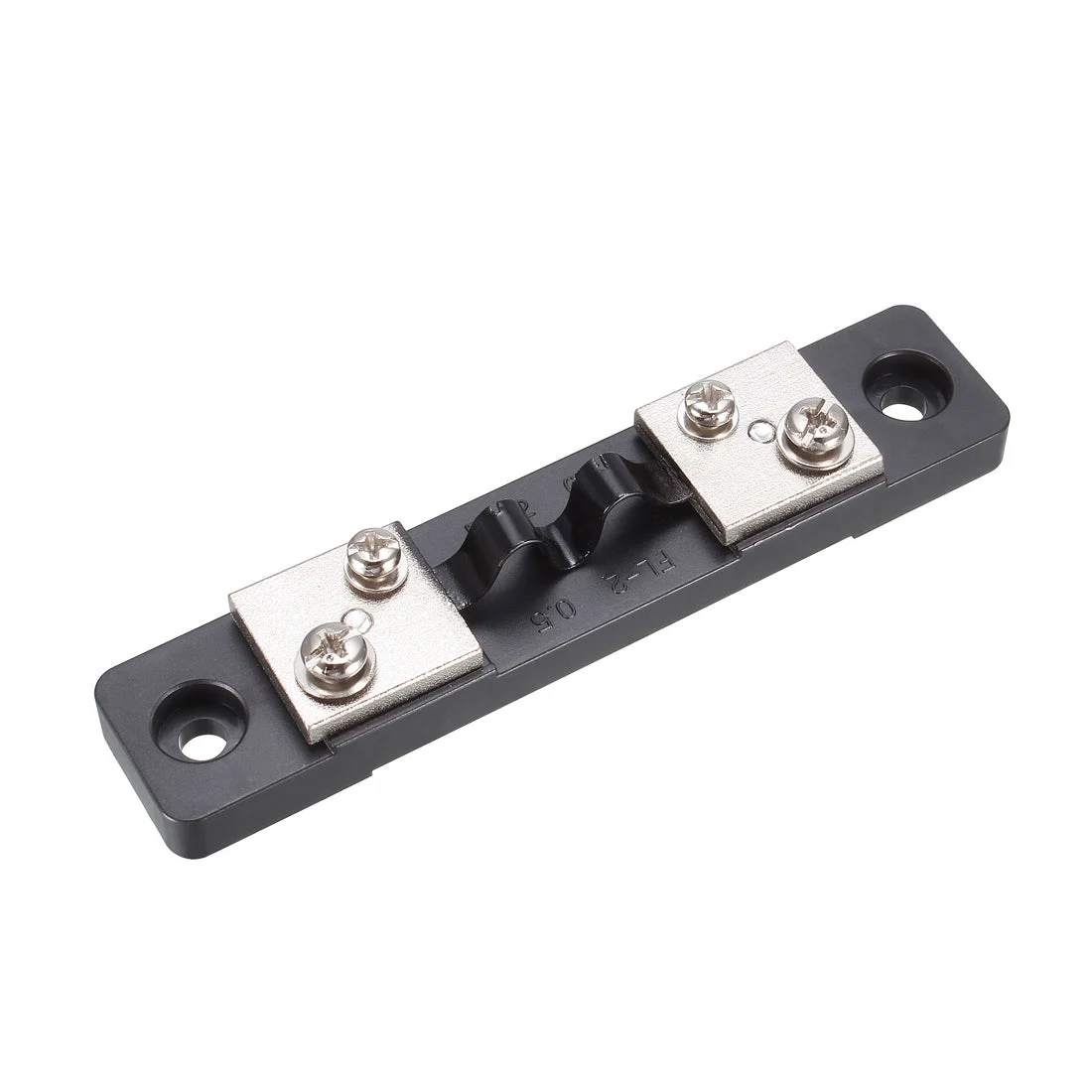

10A DC Ammeter Shunt Resistor
Rated Current: 10A
Voltage Drop: 75mV
Materials: Copper
Overload Rated Current: 120%(2 Hours)
Accuracy: 0.5%
Working Temp: -40C to 60C(-40F to 140F)
Type: FL-2 External
Length: 120mm
Width: 25mm
Overall Height: 19mm
Weight: 54g
Application: An ammeter shunt allows the measurement of current values too large to be directly measured by a particular ammeter. In this case, a separate shunt, a resistor of very low but accurately known resistance, is placed in parallel with a voltmeter, so that all of the current to be measured will flow through the shunt.
Package Content:
1 pcs 10A / 75mV External Shunt Resistor
