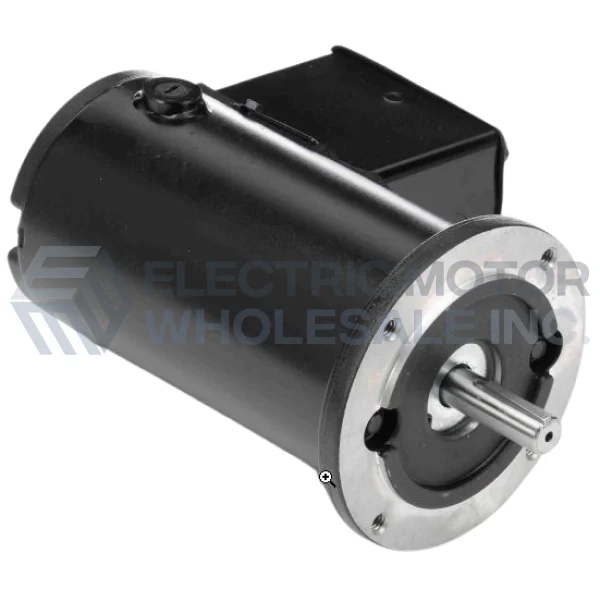

Leeson Precision sub-fractional horsepower DC permanent magnet motors is designed for use with full wave non-filtered SCR controls for adjustable speed applications requiring dynamic braking and constant torque throughout the speed range.
Mechanical Features: Compact space saving designs. Ball bearings. Long life brushes for demanding applications. Brushes easily replaced without disassembly of the motor. Standard mounted conduit box on 31 and 34 frame models simplifies connections.
Electrical Features: Continuous duty with full wave unfiltered rectified SCR (thyristor) controls. Linear speed torque characteristics throughout the speed range. High starting torques. Reversible rotation from a simple two lead connection.
Specifications
|
Application: |
General Purpose |
|
Output HP: |
1/8 |
|
Output KW: |
0.10 |
|
Output RPM: |
1750 |
|
Frame NEMA: |
34 |
|
Mount NEMA: |
C-Face No Base |
|
Input Voltage DC: |
180 |
|
Full Load Amps: |
0.70 |
|
Winding: |
Permanent Magnet |
|
Enclosure NEMA: |
TENV |
