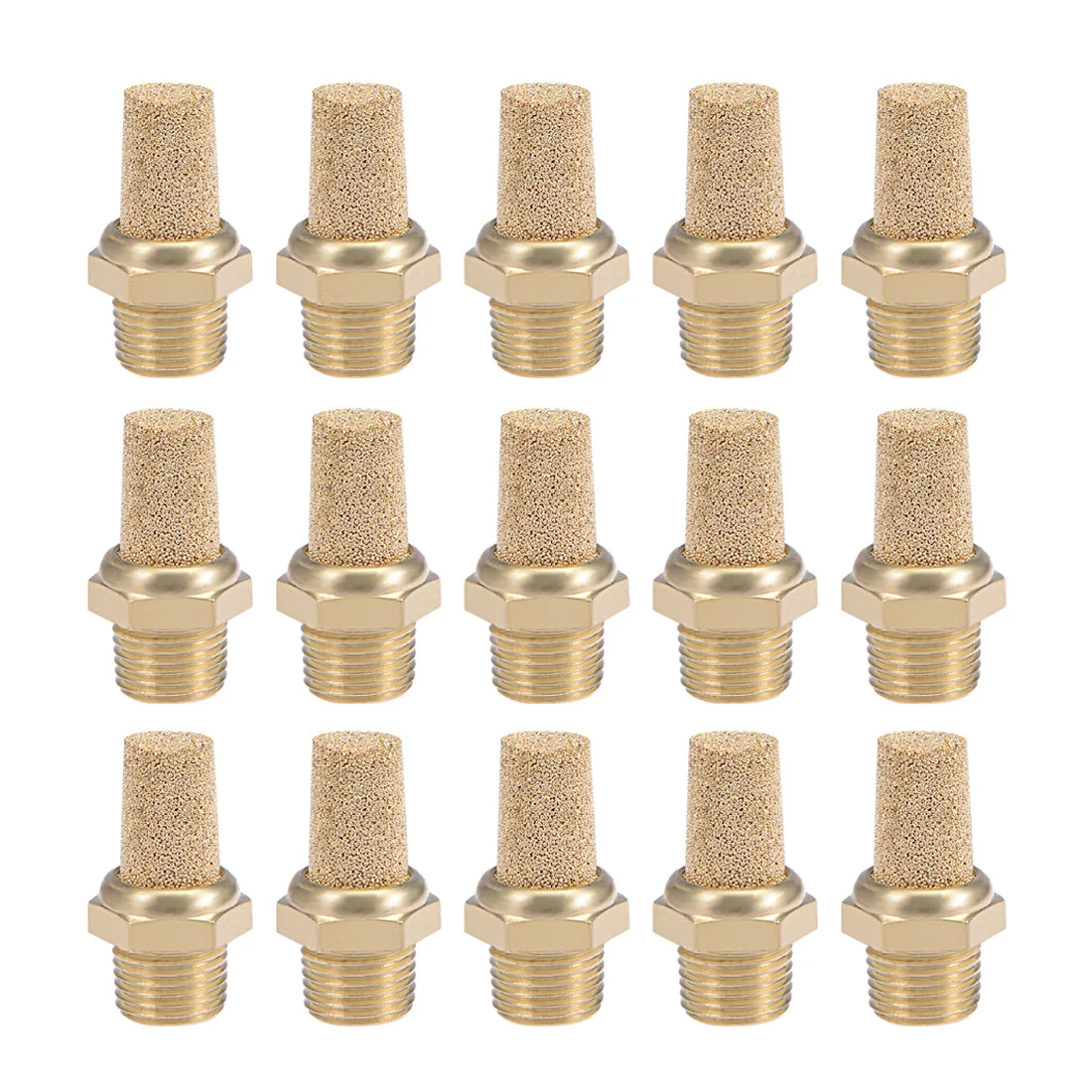

1/8 PT Sintered Bronze Exhaust Muffler with Brass Body Protruding 15pcs

About this item

• PRODUCT NAME – Brass Solenoid Valve Pneumatic Muffler Filter.
• MAIN SIZE – Total Size Per Piece : 0.53 x 0.9inch / 13.5 x 23mm(D*H);Hex:0.47inch / 12mm;Thread Outer Diameter:1/8 PT / 9.6mm;Thread Length:0.27inch / 7mm.
• OTHER PARAMETER – Filtering Element:Sintered Bronze;Thread Pitch (Standard : Whitworth 55 degree): 28G.
• APPLICATION – used to reduce dynamic noise of the pneumatic components or device exhaust.
• PACKAGE CONTENT – 15 x Pneumatic Muffler.

FEATHERS
Application – used to reduce dynamic noise of the pneumatic components or device exhaust.
PARAMETER
Product Name : Pneumatic Muffler
Filtering Element : Sintered Bronze
Body Material : Brass
Color : Golden Tone
Maximum Pressure : 300PSI
Operation Temperature : 2 ~ 150 Celsius
Total Size Per Piece : 0.53 x 0.9inch / 13.5 x 23mm(D*H)
Total Length : 0.9inch / 23mm
Hex Length : 0.47inch / 12mm
Thread Outer Diameter : 1/8 PT / 9.6mm
Thread Length : 0.27inch / 7mm
Thread Pitch (Standard : Whitworth 55 degree): 28G
Per Piece Weight : 0.2 oz / 6 g
Package Content
15 x Pneumatic Muffler
