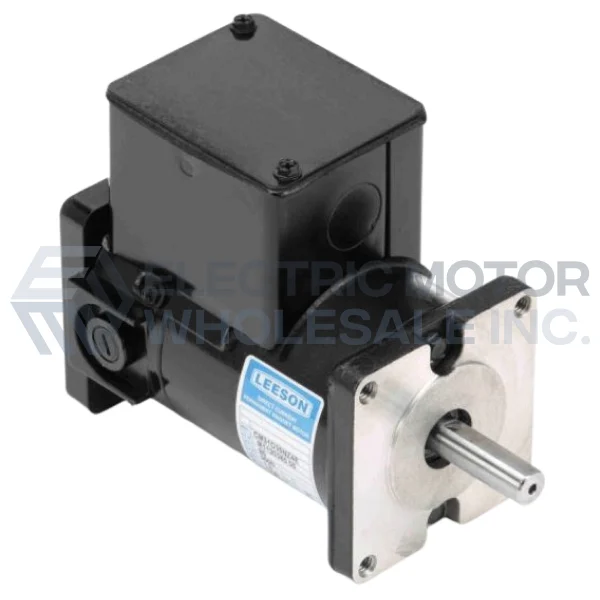

LEESON SUB-FHP Low Voltage DC Motors are precision sub-fractional horsepower low voltage direct current permanent magnet motors designed for battery or solar powered operations, or generator supplied low voltage DC. Mechanical
Mechanical Features: Compact space saving designs. Standard conduit box simplifies connections. Ball bearings. Long-life brushes for demanding applications. Brushes easily replaced without dis-assembly of motor.
Electrical Features: High starting torques for heavy load applications. Linear speed/torque characteristics over entire speed range. Capable of dynamic braking for faster stops. Reversible rotation from a simple two lead connection. Class F insulated with high temperatures welded commutators.
Specifications
|
Application: |
General Purpose |
|
Output HP: |
0.17-0.33 |
|
Output KW: |
0.13-0.25 |
|
Output RPM: |
1800-3900 |
|
Frame NEMA: |
31 |
|
Mount NEMA: |
Square Flange |
|
Input Voltage DC: |
12-24 |
|
Full Load Amps: |
14.0 |
|
Winding: |
Permanent Magnet |
|
Enclosure NEMA: |
TENV |
