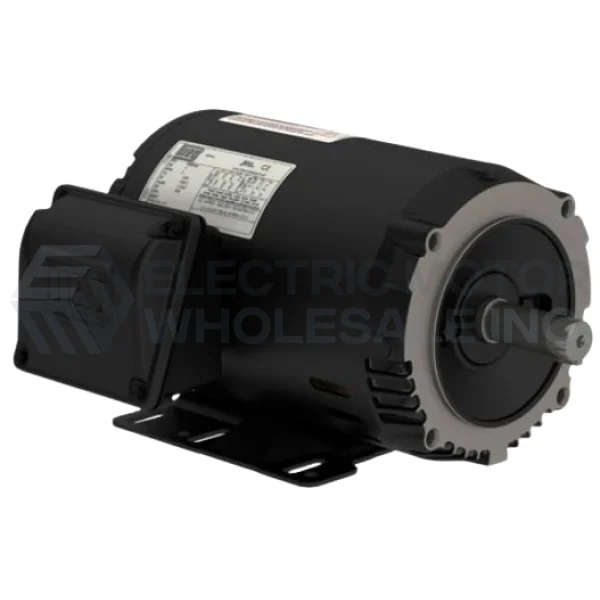

WEG Three Phase General Purpose Rolled Steel Motor designed for environments where dirt and moisture are minimal. Widely used in applications such as compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standards and the minimum efficiency level programs in force worldwide.
Features:
- NEMA Premium efficiency rating
- Suitable for VFD operation as per NEMA MG1
- Variable Torque: 1000:1
- Constant Torque: 3:1
- 7/8″ Keyed output shaft
- C-face mounting provisions with rigid base
- Dual rated 60/50Hz (190-220/380-415V @ 50Hz)
- Class F inverter rated insulation system
- Motor frame painting system 500 hours salt spray resistant
- F1 mounting as standard
- New ventilation system for improved thermal performance
- Robust foot design suitable for tougher applications
- Oversized diagonally split aluminum terminal box that exceeds IP55 requirements
- Terminal box rotatable in 90 degrees increments for flexibility during installation
- Color coded leads as standard for easy wiring
- Internal bolts giving a clean surface to the motor for easy cleaning and paint reapplication
- Double shielded ball bearings
- Aluminum endshields
- Cast iron flange
Specifications
|
Brand: |
WEG |
|
Application: |
General Purpose |
|
Output HP: |
1.5 |
|
Output KW: |
1.1 |
|
Output RPM: |
3510 |
|
Frame Size NEMA: |
143/5TC |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
ODP |
|
Enclosure IEC: |
IP21 |
|
Voltage: |
230/460//190-220/380-415 |
