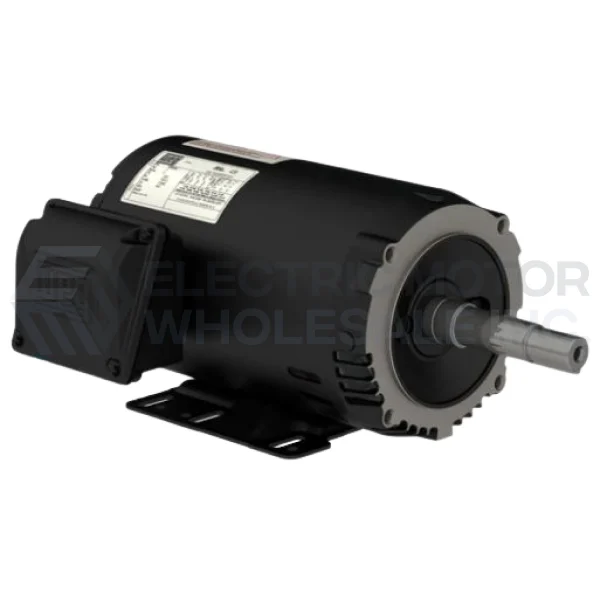

WEG Three Phase JM Pump Motor is designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.
Features:
- Inverter Rated 1000:1 VT
- NEMA Premium efficiency rating
- Durable rolled steel frame
- For rolled steel: 50/60Hz rated (same HP at 50Hz with a 1.0 SF)
- For cast iron: 50Hz at reduced HP, IE3 efficiency, and CE mark
- Class F insulation (Impregnation resin and magnet wire are class H)
- F1 mounted (cast iron frames are F2 convertible)
- Stainless steel nameplate – laser etched with high contrast background
- Regreasable ball bearings
Specifications
|
Brand: |
WEG |
|
Application: |
Closed Coupled |
|
Output HP: |
1.5 |
|
Output KW: |
1.1 |
|
Output RPM: |
3510 |
|
Frame Size NEMA: |
143/5JM |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
ODP |
|
Voltage: |
230/460//190-220/380-415 |
|
Frequency (Hz): |
60//50 |
