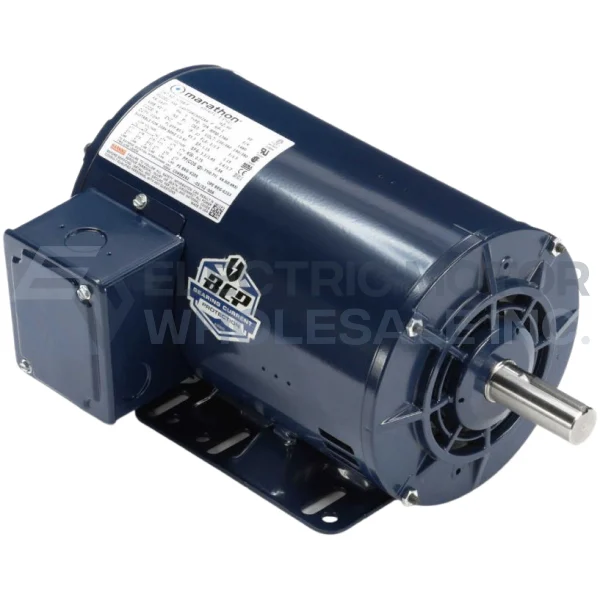

APPLICATIONS: Shaft Grounding Ring Premium XRI Efficiency Motor used on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry. Substantial energy savings can be realized when using these high efficiency motors. Guaranteed efficiencies offer an eXtra Return on your Investment when using these premium efficiency motors on high cycle or long run time applications.
FEATURES:
- UL recognized component listing and CSA certification
- Permanently lubricated sealed bearings
- BCP (Bearing Current Protection)
This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
Specifications
|
Brand: |
Marathon |
|
Application: |
General Purpose |
|
Output HP: |
1.5//1 |
|
Output KW: |
1.1//0.75 |
|
Output RPM: |
1755//1465 |
|
Frame Size NEMA: |
145T |
|
Mount NEMA: |
With Base |
|
Enclosure NEMA: |
DP |
|
Voltage: |
208-230/460//190/380 |
|
Frequency (Hz): |
60//50 |
