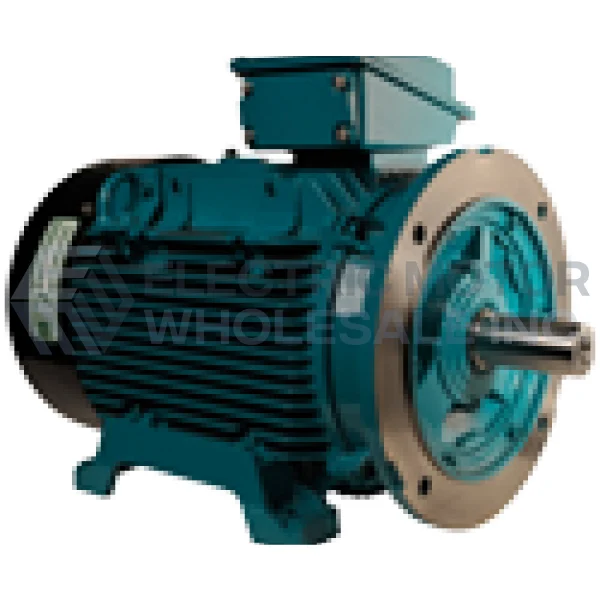

Description: Heavy duty cast iron construction; frame, end brackets & conduit box with heavy gauge steel; fanguard and non-sparking fan. Used for Severe Duty Applications.
- Removable/repositionable feet
- NEMA MG1-PART 31 Inverter Duty
- VPI Impregnation Tropicalized
- Class F insulation with class B temperature rise
- Cast Iron conduit box with drilled and tapped entry is rotatable in 90 degree increments
- Warranty: 3 Years
- CSA approved for Class I; Division 2
Specifications
|
Brand: |
Brook Crompton |
|
Application: |
General Purpose |
|
Output HP: |
1.5 |
|
Output KW: |
1.1 |
|
Output RPM: |
1800//1500 |
|
Frame Size IEC: |
90SD |
|
Mount IEC: |
B35 Foot/Flange |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP55 |
|
IEC Shaft Dia.: |
24mm |
